| SOC: | Allwinner H713M / H716 |
| CPU: | Quad Core ARM Cortex-A53 |
| OS: | Android 11.0 |
| Resolution: | 1280*720P |
| Brightness: | 150 ANSI lumens |
| Technique: | 2.69-inch LCD TFT display |
| Throw Ratio: | 1.18:1 (@100 inch) |
| Focusing: | Remote control electric focusing |
| Projection Size: | 40-150 inch |

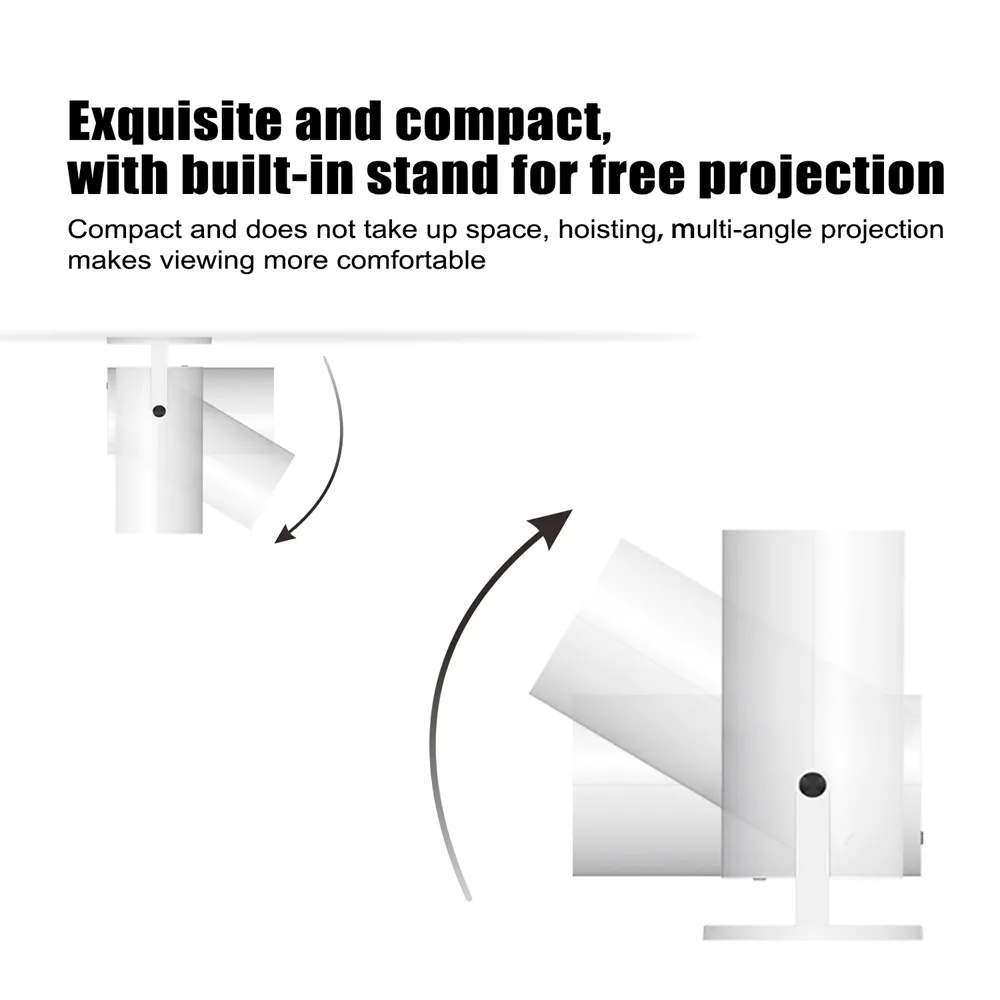

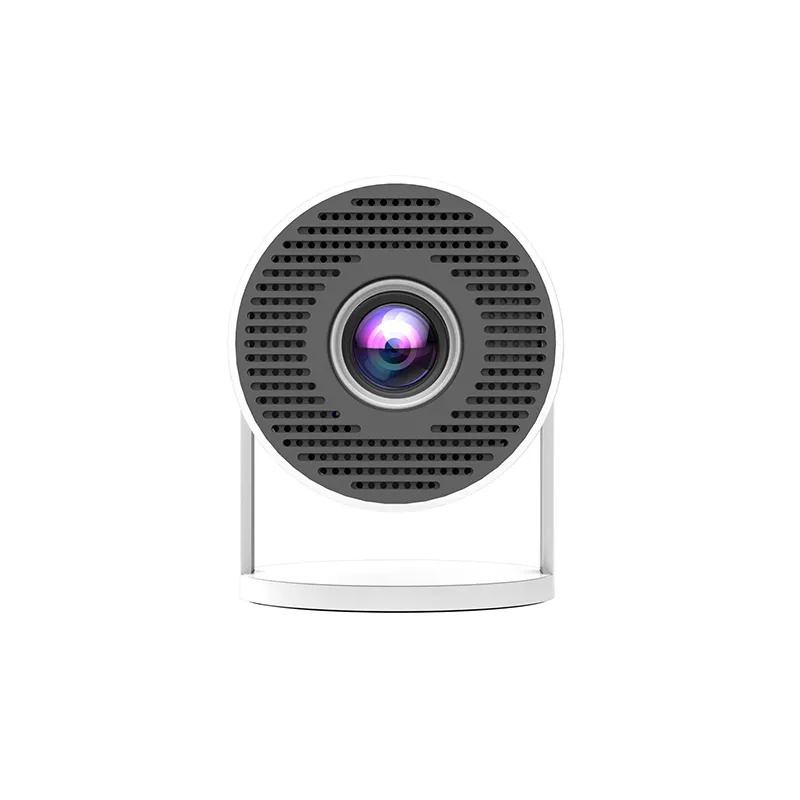

1.Support Hoisting: It comes with a stand, which can be hoisted and projected on the table at 180º angles. It is compact and does not take up space, making watching movies more comfortable.

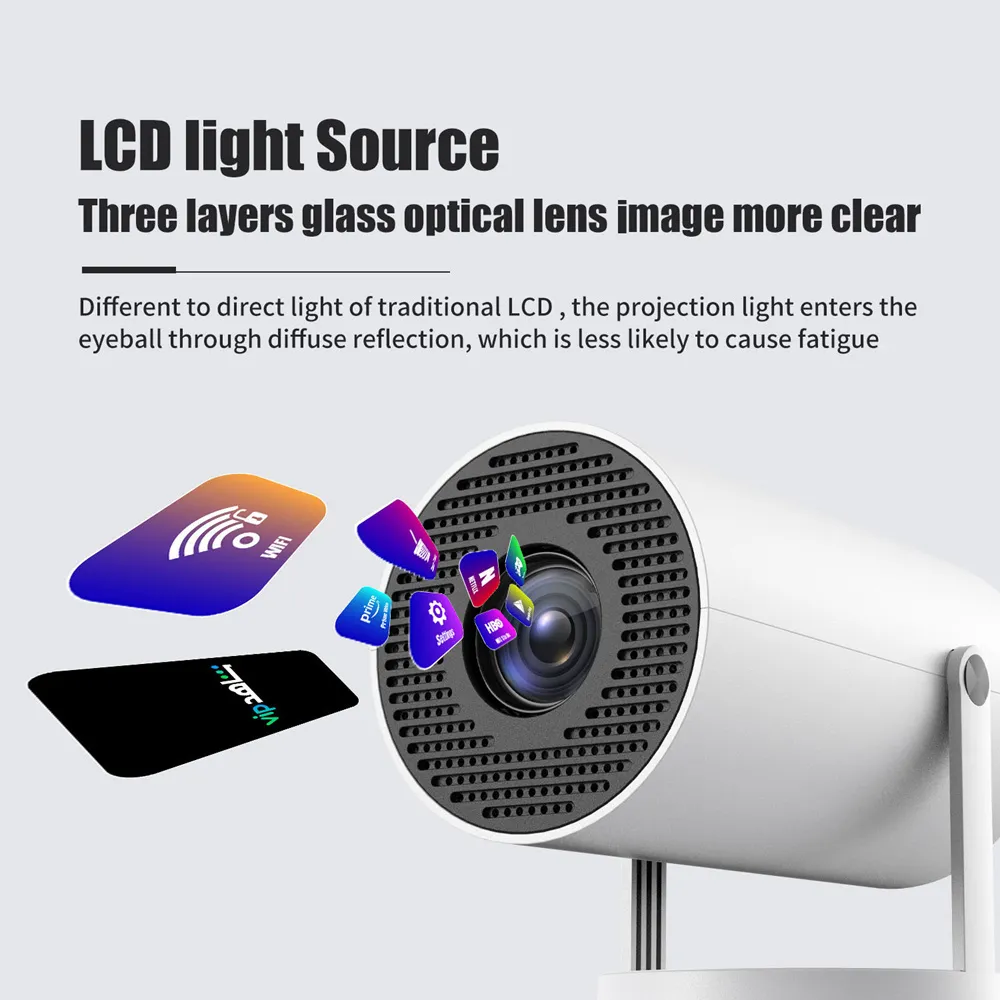

2.LCD Light Source: The three-layer glass optical lens is different from the direct light of traditional LCD TVs. The projection light enters the eyeballs through diffuse reflection, which is less likely to cause fatigue.
3.HD Image Quality:ACE image quality engine, higher brightness, clear and delicate image quality, larger and richer picture
4.Intelligent Focus: After powering on, the screen automatically focuses and displays clearly, you just have to enjoy it.
5.Keystone Correction: Place it as you like, the screen will be square every time you project it, and you will not be troubled by the placement.
| Basic Parameters | |
| Model Number: | P2 |
| Processor: | Allwinner H713M /H713 |
| CPU: | Quad core ARM Cortex-A53 |
| GPU: | Mali-G31, OpenGL 3.2, Vulkan 1.1, OpenCL 2.0 |
| DRAM: | 1GB (2GB Optional,Limited to H716) |
| Flash: | 8GB (16GB/64GB) |
| Operation System: | Android 11.0 |
| WIFI: | 802.11 a/b/g/n/ac/ax(2.4G+5G+WiFi6+BLE) |
| Optics | |
| Technique: | 2.69-inch LCD TFT display |
| Resolution: | 1280*720P |
| Color Temperature: | 8400K ±(1900K) |
| Brightness: | 150 ANSI lumens |
| Contrast Ratio: | 1000:1 |
| Image Flip: | 360 degrees flip |
| Lens: | 3 pieces glass lens |
| Throw Ratio: | 1.18:1 (@100 inch) |
| Bulb Life: | ≥20000 Hrs |
| Lamp Power: | 30W |

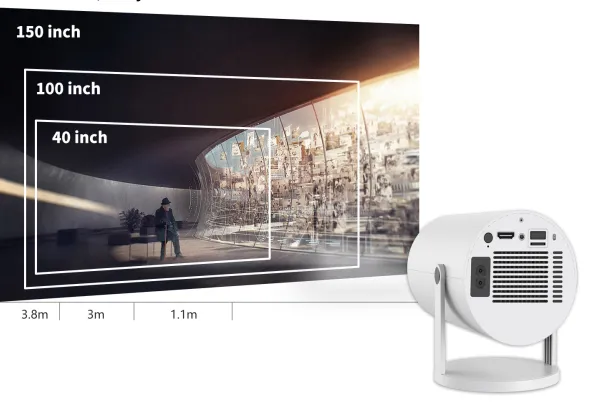

| Projection Distance: | 1.1-3.8M |
| Projection Size: | 40-150 inch |
| Fan Noise: | <33dB |
| Keystone Correction: | Automatic keystone correction |
| Focusing: | Remote control electric focusing |
| Other Attributes | |
| Place of Origin: | Guangdong, China |
| Brand Name: | IK |

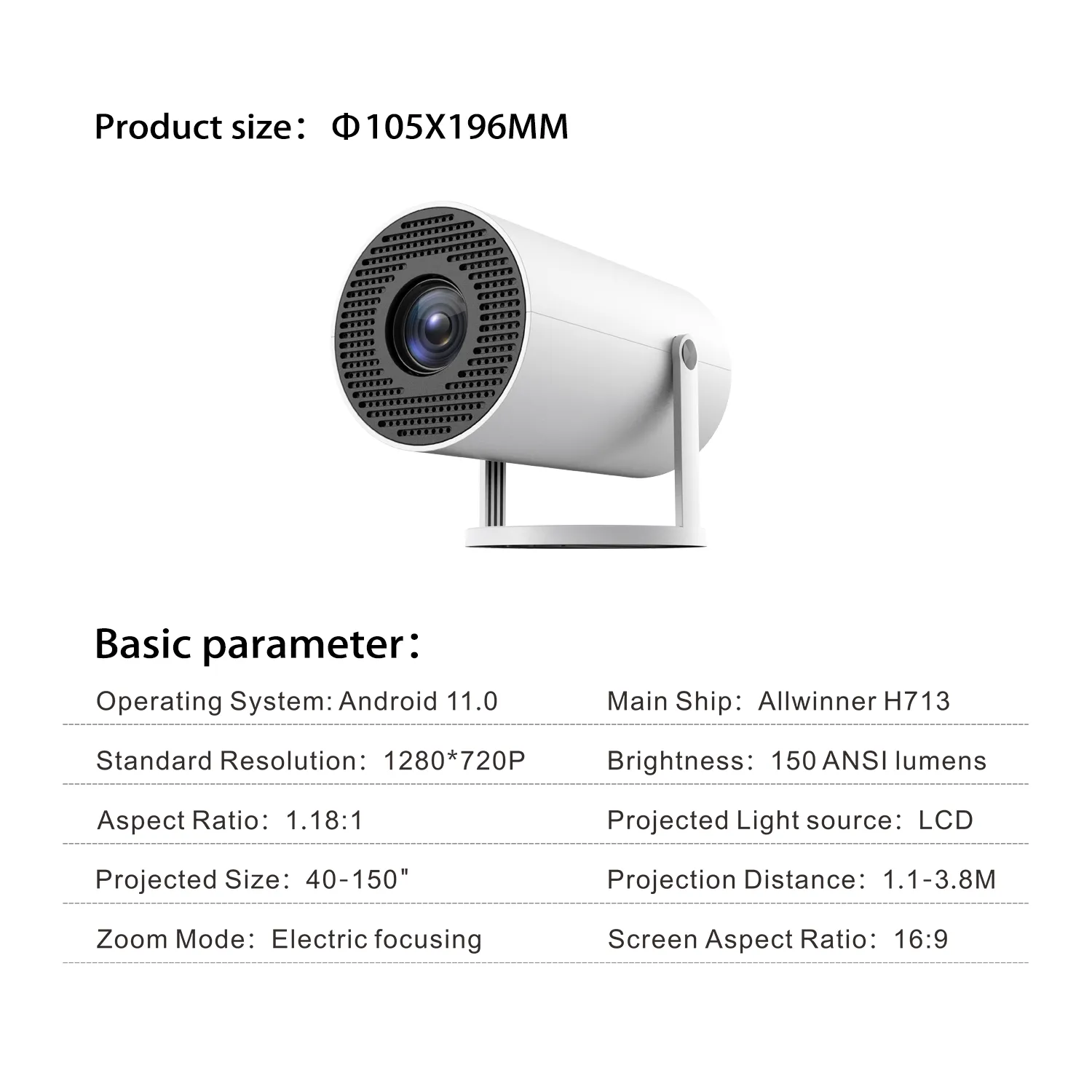

| Item size: | 196*105mm |
| Weight: | 0.5 kg |
| Certification: | CE, ROHS, FCC |
| Lamp: | LED |
| Power: | 48W Max |
| Lamp life: | 30000 hours |
| Warranty: | 1 year |
Pictures & specifications for reference only. Contact our sales team for details.
Product Details

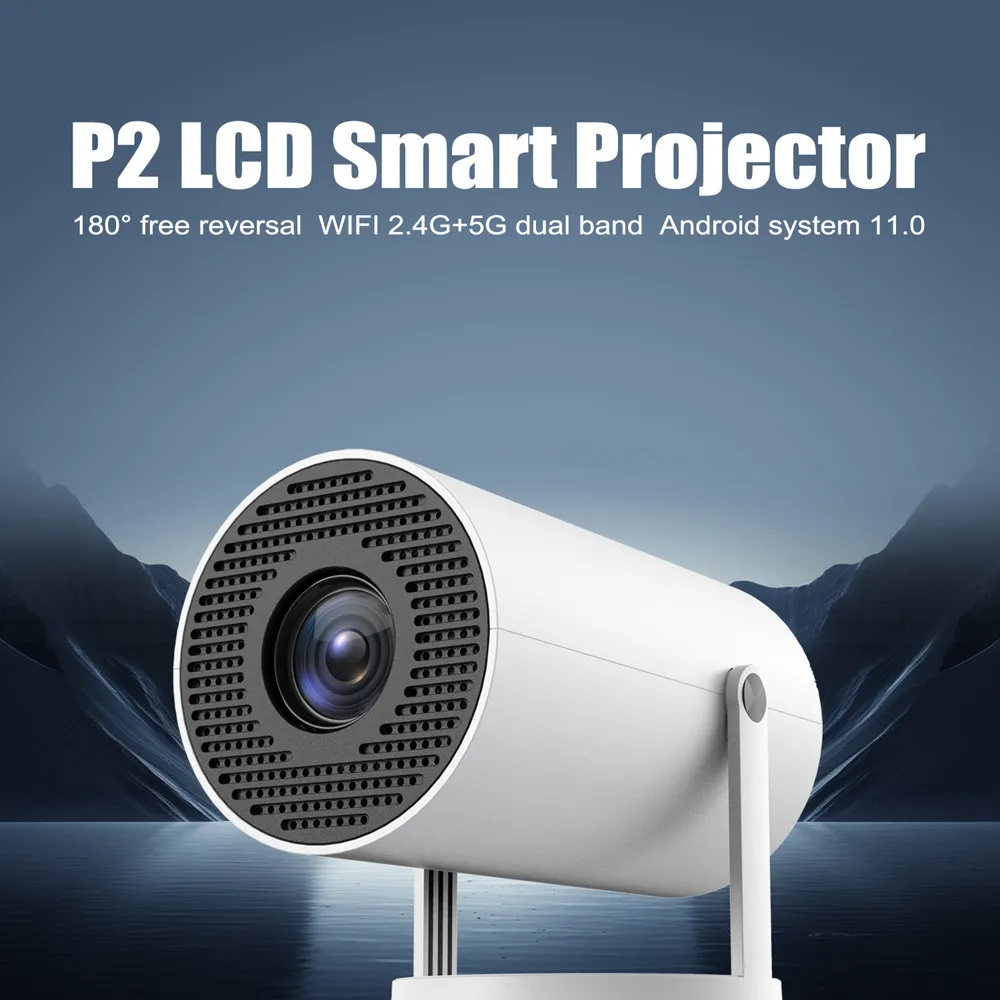

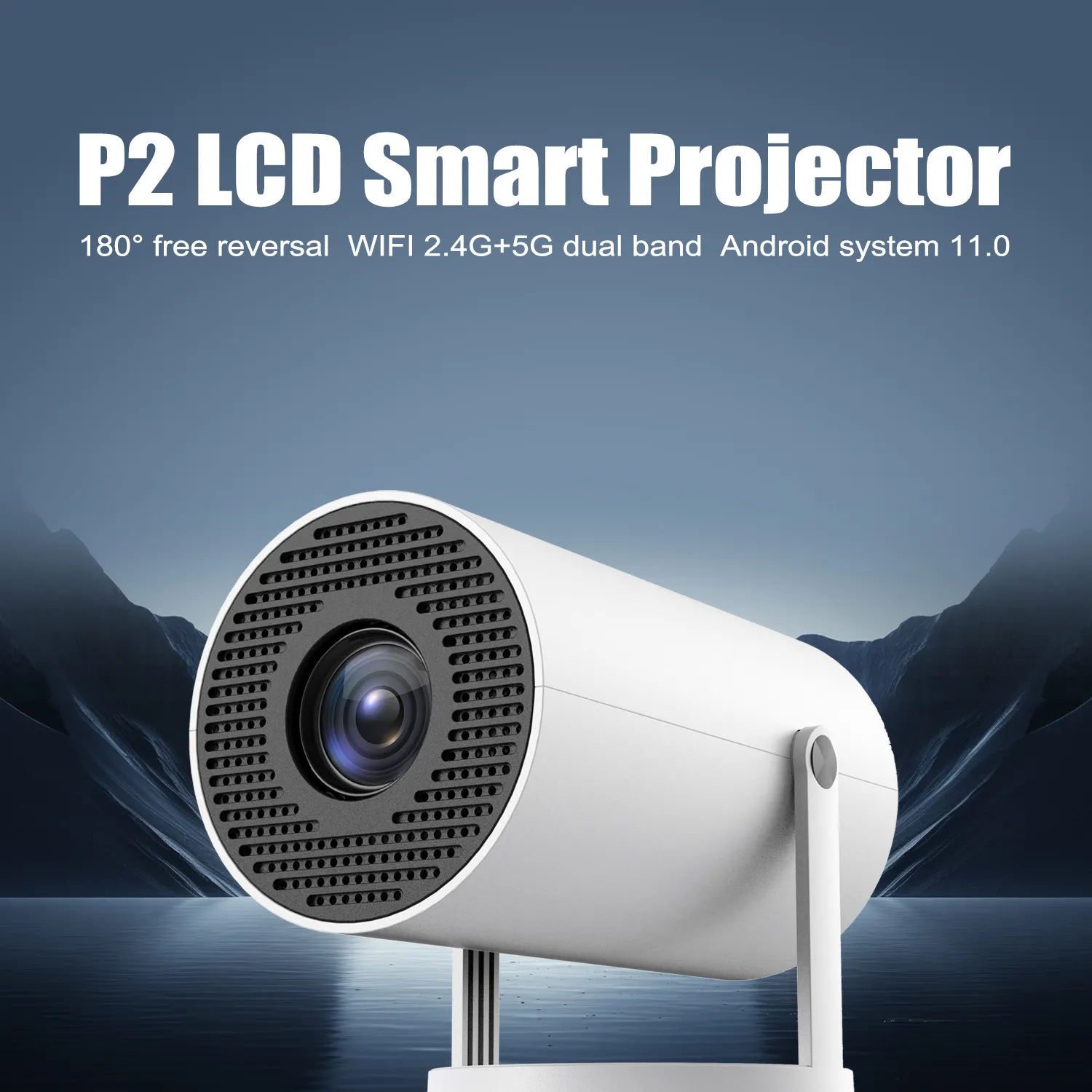

This OEM‑ODM wholesale projector is built on Allwinner H713M / H716 chips for global distributors, resellers and ODM buyers. Running Android 11, this home cinema projector delivers 150 ANSI‑lumens native 720P output, featuring auto‑keystone correction, motorized focus, 3‑piece glass lens and long‑life LED light source. It supports up to 1TB USB storage, dual‑band Wi‑Fi 6 & BLE Bluetooth and full audio‑video ports. All specs are verifiable; low‑MOQ stock is available. This auto‑keystone correction projector supports resale inventory and custom‑firmware ODM projects for overseas markets.
1: What optical features help reduce after‑sales risks for bulk buyers?
This long‑life LED projector adopts a 3‑piece glass lens and ≥20000‑hour LED light source. The glass lens mitigates thermal focus drift, a common complaint for plastic‑lens devices. At 150 ANSI lumens, it performs well in dim‑light environments. Reliable optical hardware lowers return rates for cross‑border merchants.
2: How do correction and focus functions improve real‑world usability?
Manual focus and skewed frames are typical pain points for a mini portable projector. Automatic keystone correction straightens distorted images, and motorized focus can be adjusted via remote control. 360° image flip supports desktop and ceiling mounting. Note: image quality will degrade under extreme large‑angle side‑projection.
3: What chip‑system differences should purchasers pay attention to?
Two SKU options are offered: Allwinner H713M (1GB DRAM) and upgraded H716 (optional 2GB DRAM) for smoother multi‑tasking. Powered by Android 11, this Wi‑Fi 6 Android projector is designed for household scenarios; 24‑hour heavy‑duty continuous operation is not recommended. Buyers can select SKUs based on target‑market budgets.
4: How do wireless and power specs adapt to global sales?
Dual‑band Wi‑Fi 6 and BLE Bluetooth ensure stable streaming and easy peripheral pairing. AC 100‑240V wide‑voltage input fits most national power standards. This mobile projector simplifies inventory management for distributors selling across multiple regions.
5: What interfaces and firmware options meet end‑user and ODM needs?

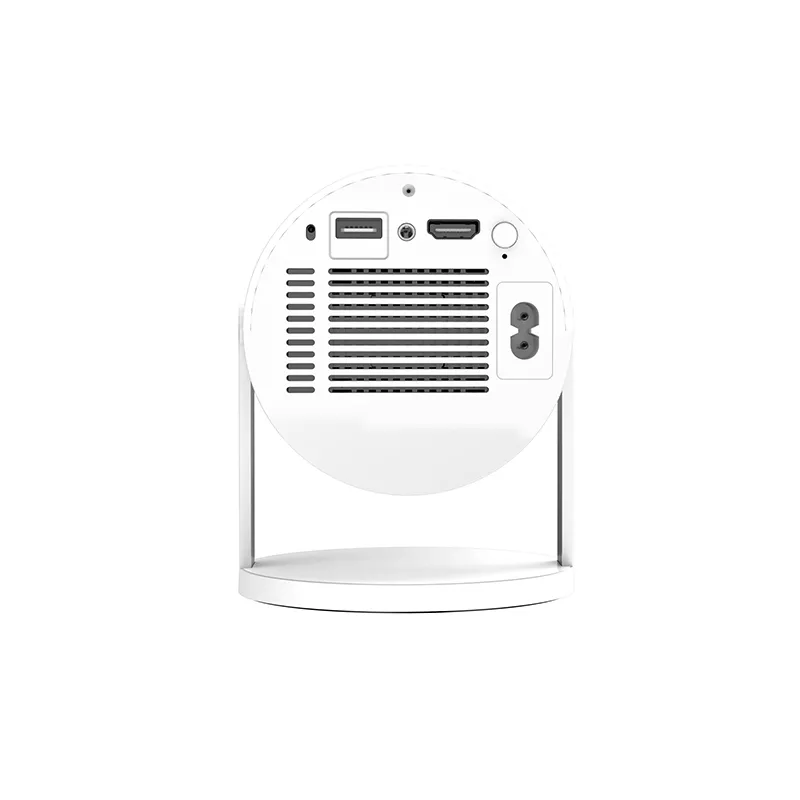

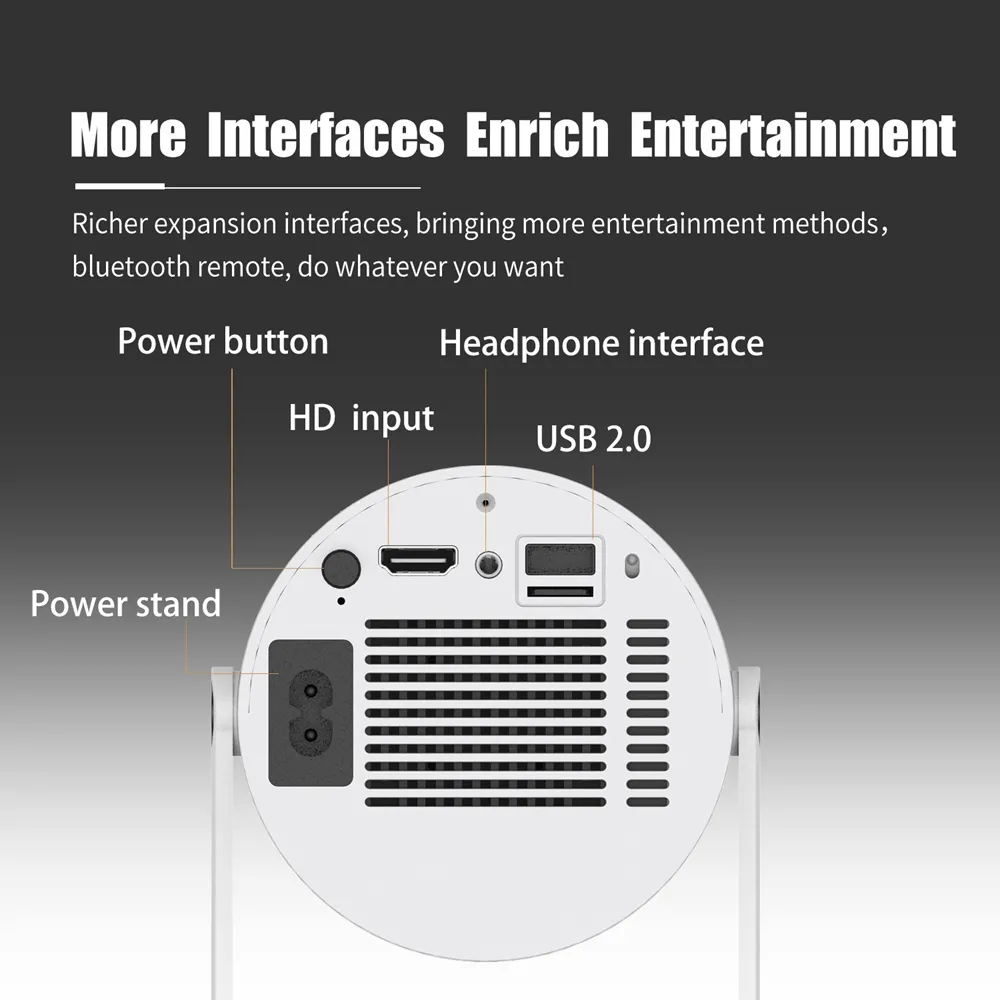

It comes with HDMI1.4, USB2.0 and a built‑in 3W speaker. USB supports up to 1TB external storage with full compatibility for mainstream media and SRT / ASS subtitles. USB local upgrade and OTA online upgrade are supported. Pre‑installed APK and system modifications are available upon meeting OEM MOQ.
1. Can we implement OEM & ODM customization for bulk orders?
Yes. Shell silk‑printing, boot‑logo and firmware customization are available. Different items require separate MOQ and generate extra costs. Contact sales for quotations.
2. What compliance documentation can you provide for overseas markets?
CE and RoHS documents are provided for standard units. Supporting materials for FCC, UKCA, KC can be supplied. Additional fees and extended lead‑time apply if we apply for certifications on your behalf.
3. How can I get samples? Is sample cost deductible for mass orders?
Samples are available at buyer’s cost including shipping. Sample fee can be deducted from subsequent bulk orders.
4. What are the lead‑times for stock and OEM orders?
Stock items ship within 3 working days. OEM orders take about 30 working days after custom files are confirmed. Peak‑season schedule changes will be notified in advance.
5. What is your overseas warranty and RMA policy?
Standard 12‑month warranty. To avoid high cross‑border shipping costs, we provide spare‑part support instead of full‑unit return‑and‑exchange. Full RMA process will be shared after order confirmation.
