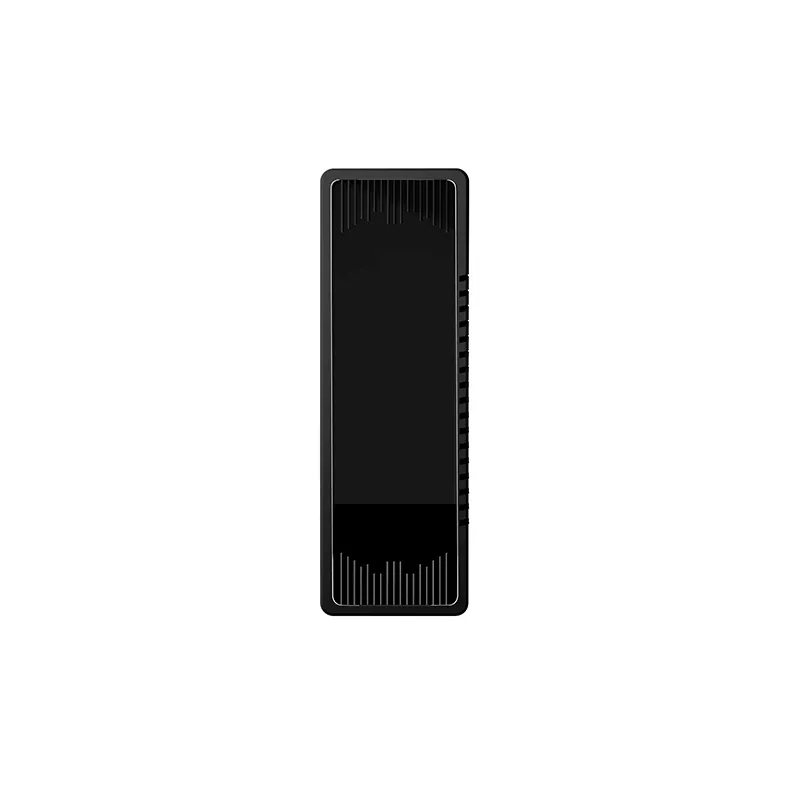

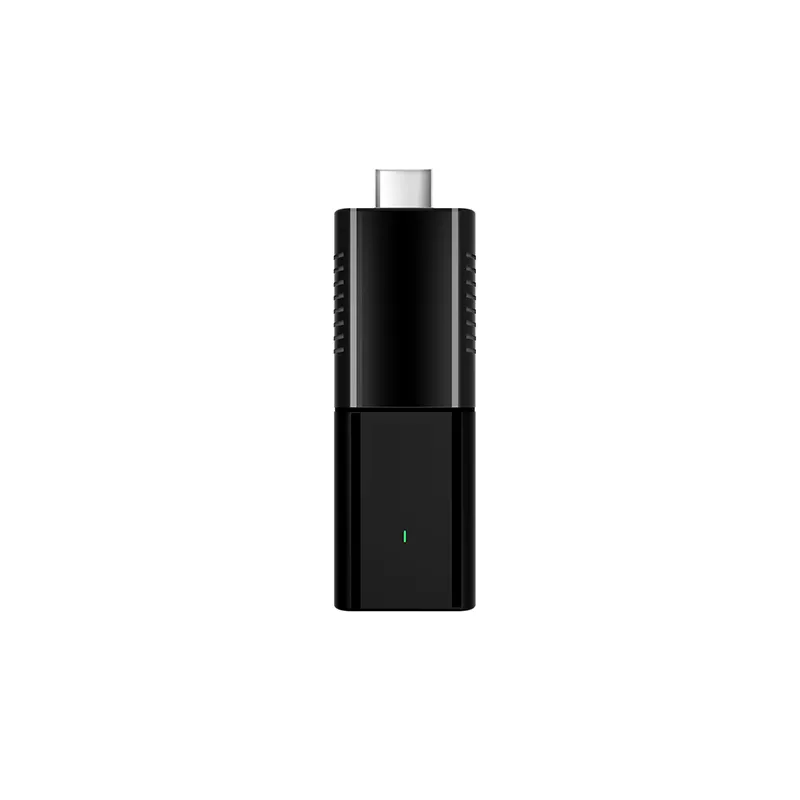

R2 android tv stick front side view, portable 4k streaming stick for wholesale odm

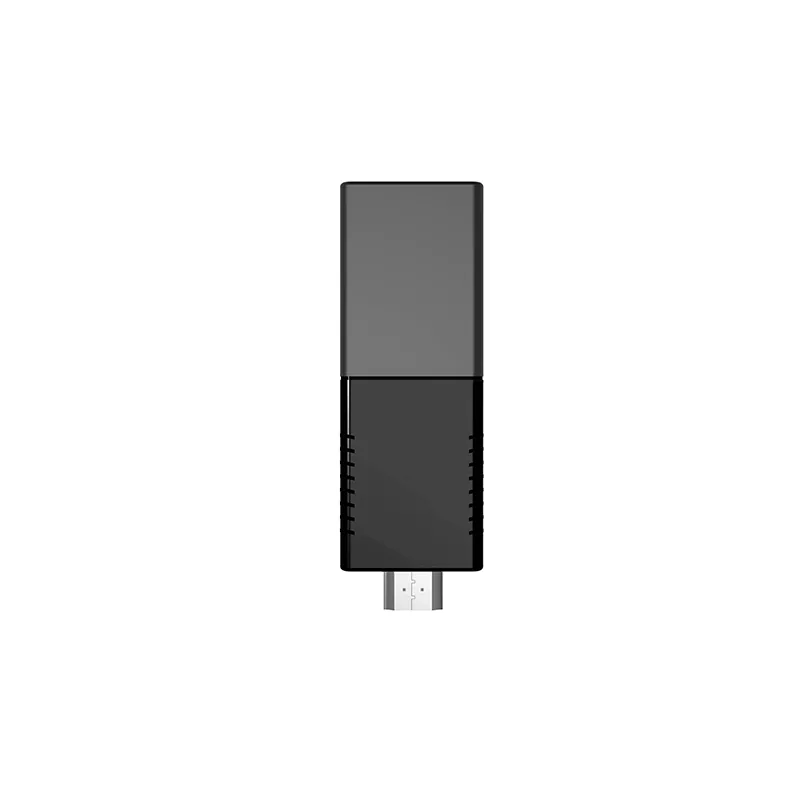

R2 tv‑stick rear angle photo, allwinner ik316 android 10 streaming media player
R2 android tv‑stick full accessories kit, complete set for bulk purchase

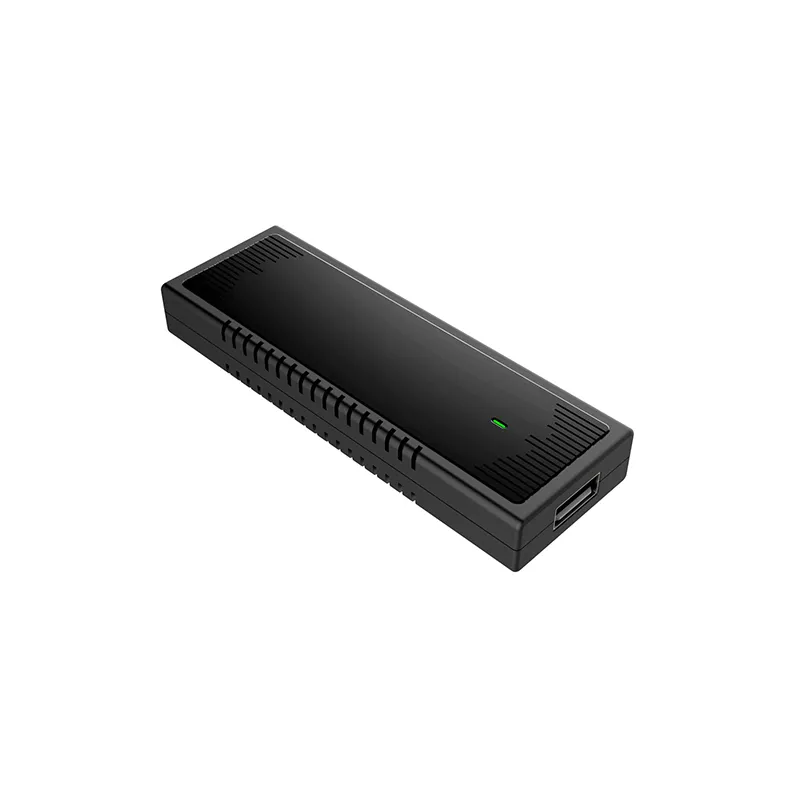

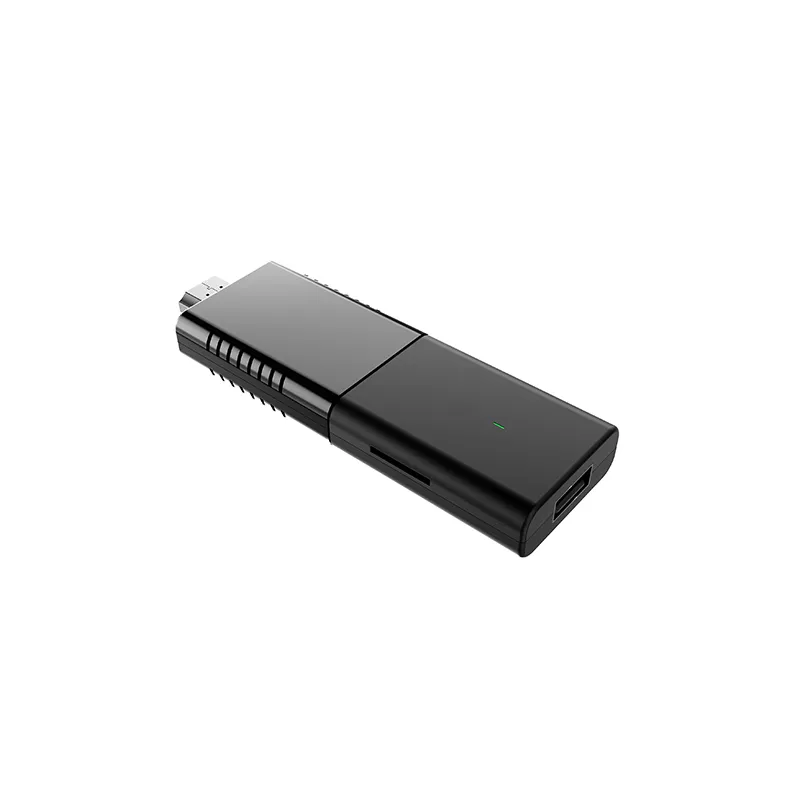

Compact R2 4k android tv stick close‑up shot, wi‑fi 6 bt5.x streaming device

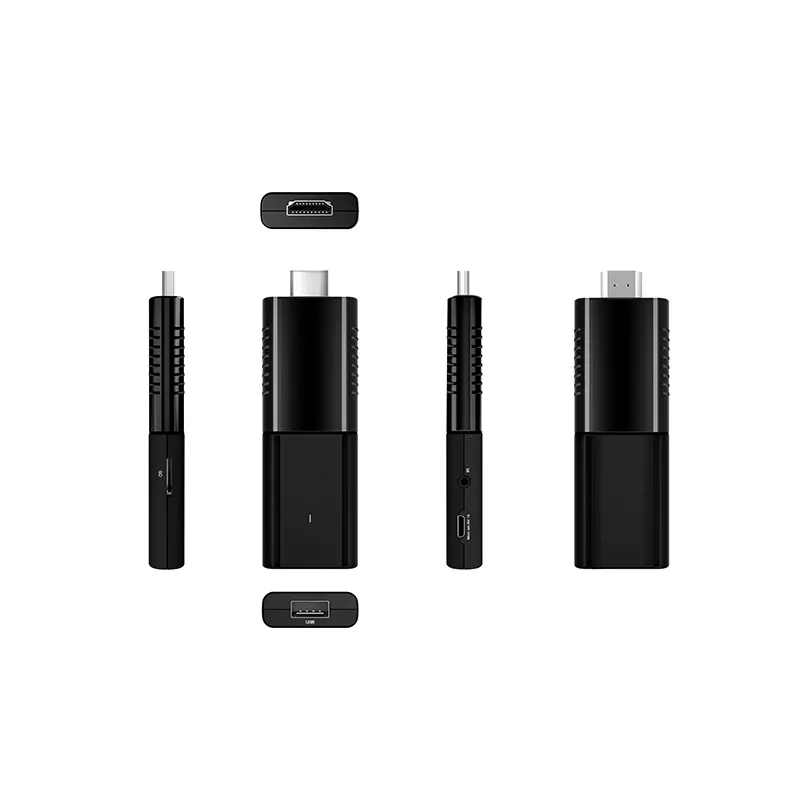

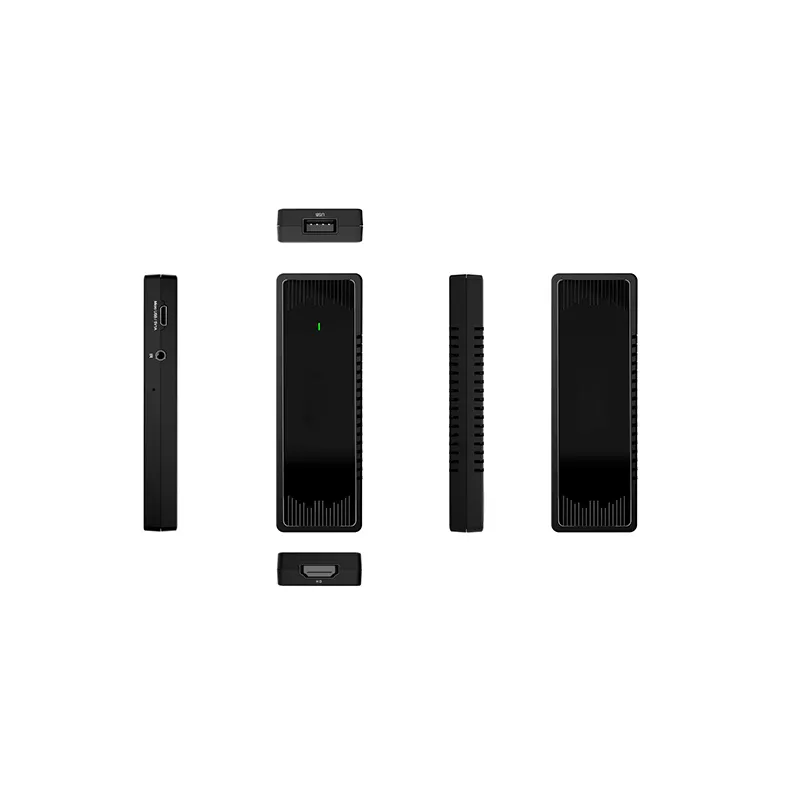

R2 portable tv stick side profile view, mini android media player for reseller
R2 tv‑stick full accessories layout, android streaming stick oem available
R2 android tv stick front side view, portable 4k streaming stick for wholesale odm
R2 tv‑stick rear angle photo, allwinner ik316 android 10 streaming media player
R2 android tv‑stick full accessories kit, complete set for bulk purchase
Compact R2 4k android tv stick close‑up shot, wi‑fi 6 bt5.x streaming device
R2 portable tv stick side profile view, mini android media player for reseller
R2 tv‑stick full accessories layout, android streaming stick oem available

R2 Android TV Stick Allwinner IK316 | Wi‑Fi 6 4K Streaming Media Player

SOC:Allwinner IK316
CPU:Quad core ARM Cortex-A53
GPU:Mali-G31, OpenGL 3.2, Vulkan 1.1, OpenCL 2.0
DRAM:1GB (2GB Optional)
Flash:8GB (16GB Optional)
OS:Android 10.0
Ethernet:N/A
WIFI:802.11 a/b/g/n/ac/ax(2.4G+5G+Wi-Fi 6+BLE)
Product Description
Shenzhen IKworld Technology Co., Ltd.

1.Allwinner IK316 Quad‑Core CPU & Mali‑G31 GPU Performance

Powered by Quad‑Cortex‑A53 CPU and Mali‑G31 GPU with OpenGL3.2 / Vulkan1.1 support, runs Android 10.0 smoothly. Handles daily streaming apps and lightweight 2D‑3D games without obvious lag for home entertainment.

2.Flexible memory and flash storage options

Comes with base 1GB DRAM / 8GB flash, supports optional upgrade to 2GB RAM and 16GB storage. Extra storage lets you install more Android TV applications and store local media files.

3.Rich multi‑format video decoding capability

Supports H.265 up to 8K@22fps, 4K@30fps VP9 and AVS2 decoding. Decodes extensive video formats, delivers crisp playback effect for both online streams and downloaded local video resources.

4.Wi‑Fi 6 + BT5.X stable wireless connection

Equipped with 802.11 ax dual‑band Wi‑Fi 6 (2.4G+5G) together with Bluetooth 5.X. Offers faster wireless throughput and wider compatibility with Bluetooth remotes, speakers and peripherals, reduces streaming stutter.

5.Diversified playback & multi‑screen interaction features

Supports Miracast, DLNA, Airplay multi‑screen cast, USB local media playback up to 128GB external drive. Users can cast phone content to TV or play local video/audio/picture files flexibly, enriches household entertainment ways.


Parametric Diagram

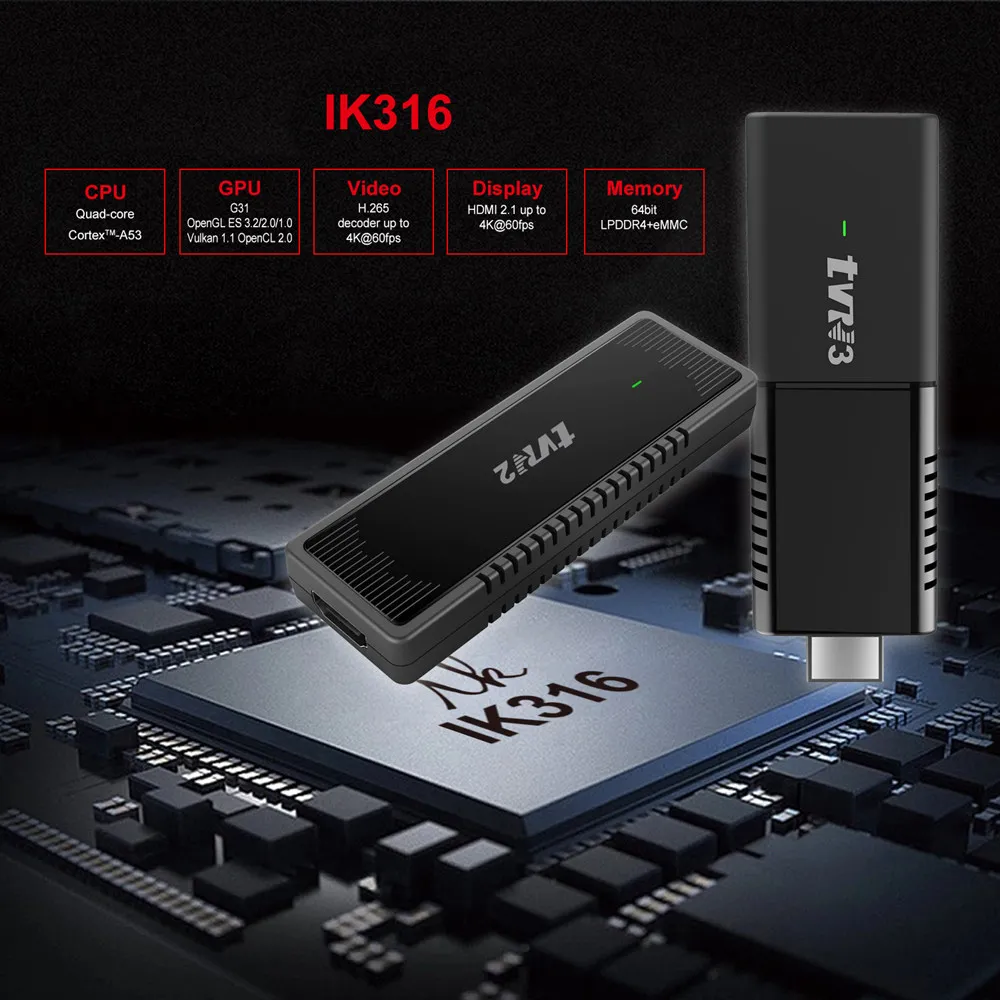

R2 android tv‑stick marketing poster, Allwinner IK316 chip 4k streaming stick for oem wholesale

tv‑stick feature poster, android 10 streaming media player hardware specification display

4k tv‑stick home usage scenario poster, portable streaming stick for home entertainment project

tv‑stick 4k hdr video decoding comparison poster, android streaming stick bulk order supply

android tv‑stick performance demo poster, wi‑fi 6 bt5.x tv stick for reseller business

tv‑stick packing list poster, complete accessories for android streaming stick odm project

Basic Parameters
Model Number:R2/R3
Processor:Allwinner IK316
Processor Core:Quad core ARM Cortex-A53
DRAM:1GB (2GB Optional)
Flash:8GB (16GB Optional)
Operation System:Android 10.0
WIFI:802.11 a/b/g/n/ac/ax(2.4G+5G+Wi-Fi 6+BLE)
Ethernet:N/A

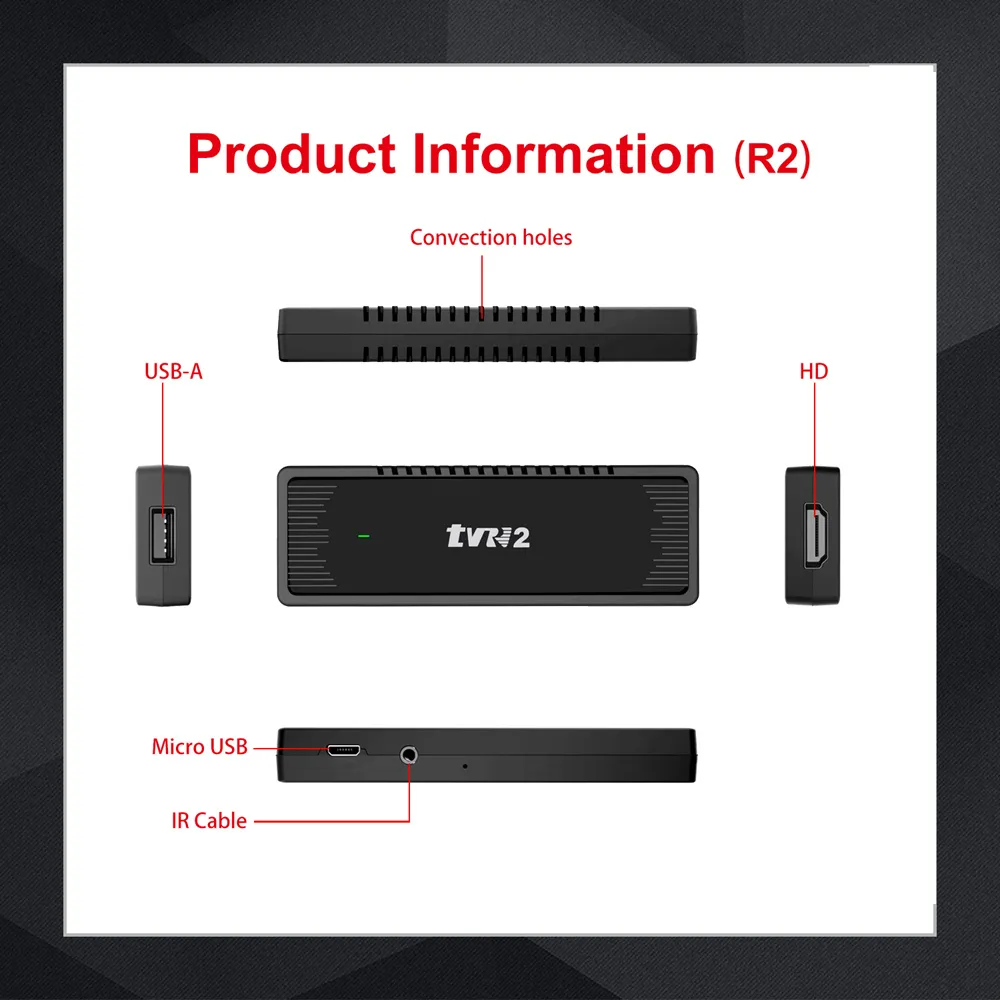

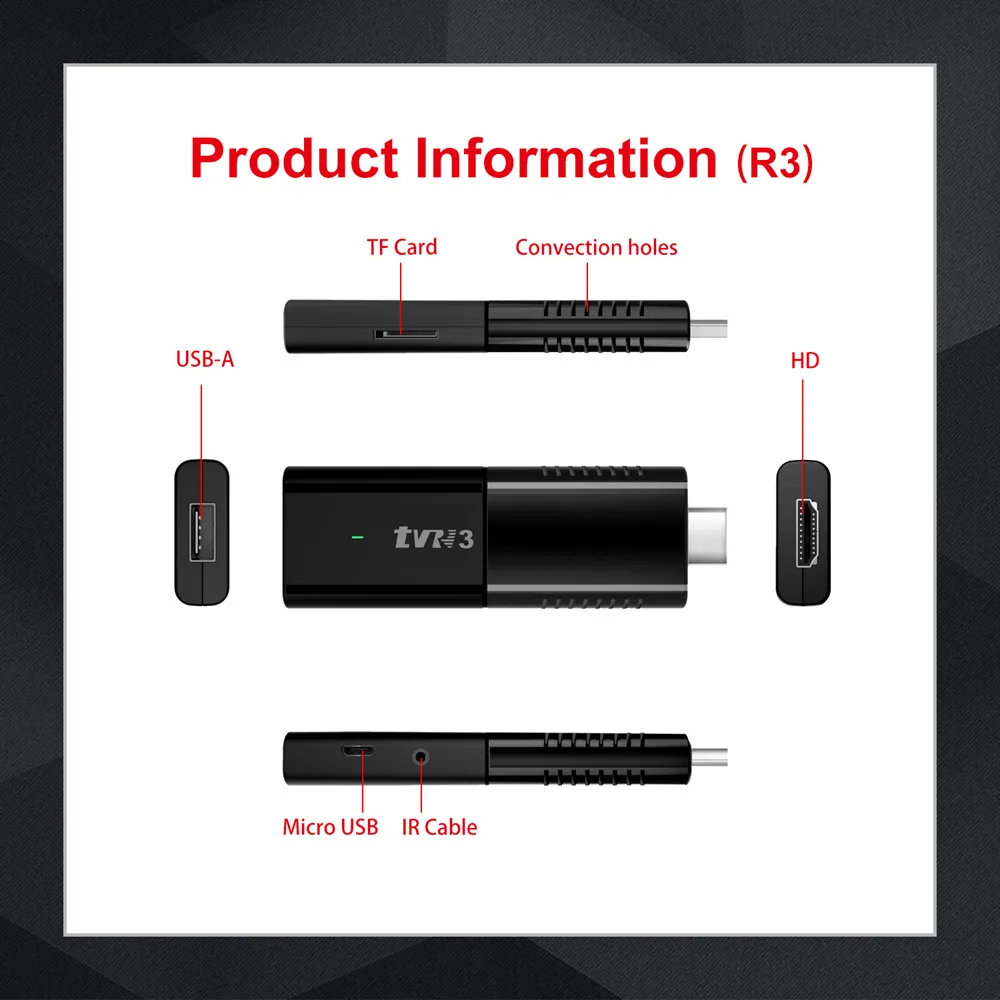

I/O
Video/Audio Input:HDMI 2.0a
Peripheral Interface:USB 2.0 HOST x1, TF x1, Micro USB x1
Power Interface:TYPE-C 5V@2A
Other Interface:Mini USB to IR receiver, LED indicator
Other Attributes
Place of Origin:Guangdong, China
Support Resolution:4K
Brand Name:IK
Type:Android Box
Certification:CE, ROHS, FCC
OEM/ODM:Support Custom LOGO
Warranty:1 year

Pictures & specifications for reference only. Contact our sales team for details.


Product Details

Built around the Allwinner IK316 chip and stable Android 10.0 operating system, the IKWORLD R2 Android TV Stick stands out as a space‑saving wireless streaming device and practical small android box. Tailored for volume‑minded wholesale distributors, mass retail resellers and entry‑level light‑use deployments, this tv stick 4k android delivers impressive H.265 8K decoding capability paired with dual‑band WiFi 6. Flexible RAM‑Flash combinations, together with full OEM branding and firmware modification support, make it well‑suited for competitive‑priced bulk purchasing projects.

1.What makes the Allwinner IK316 chip a cost‑effective choice for large‑scale TV stick orders?

It is built on the Allwinner IK316 chipset, featuring a quad‑core ARM Cortex‑A53 CPU and Mali‑G31 GPU. This mature, cost‑optimized hardware platform delivers reliable performance for daily streaming, media playback, and casual gaming, while keeping the bill of materials competitive — making it an ideal choice for high‑volume wholesale orders, price‑sensitive retail markets, and promotional bundle deals.

2.Does this TV stick support high‑resolution video decoding beyond standard 4K content?

Yes. It supports H.265 MP@L6.1 10‑bit decoding up to 8K@22fps, alongside VP9 4K@30fps, AVS2 4K@60fps, and H.264 4K@30fps decoding. While 8K playback remains niche for most end users, this decoding headroom ensures smooth, future‑ready 4K streaming and local media playback across global content platforms, helping resellers position the product as a high‑spec option at an entry‑level price point.

3.How does the dual‑band WiFi 6 keep streaming smooth for end users in crowded network environments?

Equipped with 802.11 a/b/g/n/ac/ax dual‑band WiFi 6 (2.4G+5G) and Bluetooth 5.X, this hdmi tv stick provides stable, low‑latency wireless connectivity for 4K streaming, screen mirroring (Miracast / DLNA / Airplay), and Bluetooth peripherals. WiFi 6 reduces buffering in multi‑device households, minimizing end‑user complaints and lowering return rates for wholesale partners.

4.What memory and storage tiers are available to match different regional market price points?

It comes with 1GB DDRAM (2GB optional) and 8GB eMMC flash (16GB optional), with support for up to 128GB USB storage and TF card expansion. This usb tv stick offers flexible memory configurations so you can tailor the device to entry‑level, mid‑range, or value‑added retail bundles — maximizing your profit margin across different market segments.

5.Can we build our own private‑label brand with this compact Android TV stick?

Absolutely. The IKWORLD R2 supports custom logo printing on the plastic shell, plus system‑level customization including boot logo, boot animation, pre‑installed APKs, and multi‑language packs. We offer competitive MOQ for both in‑stock and OEM orders, with dedicated technical support to help you launch and grow your own streaming device brand.


Common Queries for This Product
R2 Android TV Stick Allwinner IK316 | Wi‑Fi 6 4K Streaming Media Player

1.Is there any overheating concern when this HDMI TV stick stays plugged in for extended daily use?

Our TV stick adopts optimized thermal design for daily streaming and home entertainment, running stably under normal playback conditions. Due to the ultra‑compact form factor (99×33×13mm) that limits heat dissipation, we do not recommend non‑stop 24/7 heavy‑load commercial operation. For round‑the‑clock project deployment, our full‑size Android TV box series is the more suitable option.

2.Does this TV stick support an IR remote control, and how is the IR receiver connected?

Yes. The IKWORLD R2 supports IR remote control via a dedicated Mini USB to IR receiver interface. An IR remote control and battery are available as optional accessories for bulk orders. This is particularly useful for hotel rooms, retail displays, and users who prefer traditional remote navigation over Bluetooth or mobile app control.

3.Can the device be powered directly through the TV USB port, or is a separate adapter required?

It can be powered by a TV USB port under ideal conditions. However, different TV USB ports output varying current, which may cause random reboots or unstable performance. To ensure reliable operation, we strongly recommend using the included DC 5V@2A power adapter via the Type‑C port, especially for high‑resolution streaming sessions.

4.Is it possible to sideload third‑party applications on this Android 10 TV stick?

Yes. The IKWORLD R2 runs on the open Android 10.0 system, which allows manual installation of third‑party APK files via USB disk or network download. It also supports pre‑installation of your required apps during OEM customization — convenient for regional streaming platforms, commercial kiosk mode, and specific market deployment needs.

5.What are the minimum order quantities and production lead times for this R2 model?

For in‑stock standard units, the MOQ is 100 pieces with shipment within 3–5 working days. For OEM customization including logo printing and system firmware modification, the MOQ is 1000 pieces with a lead time of 25–35 working days after all details are confirmed. Mixed container loading with other models is also supported.
