| Effective pixel: | 1 MP |
| Processor: | AK3918EV200 |
| Sensor: | 1 MP SC2336 |
| Lens: | 3.6MM |
| Connection: | wifi connection, Wired connection, AP hotspot connection |
| Intercom: | Two-way intercom |
| PTZ angle: | Horizontal 355° Vertical 90° |
1、Intelligent detection: It can Intelligent recognition, track the movement trajectory of objects, proactively issue warnings and push alarm information to mobile phones.

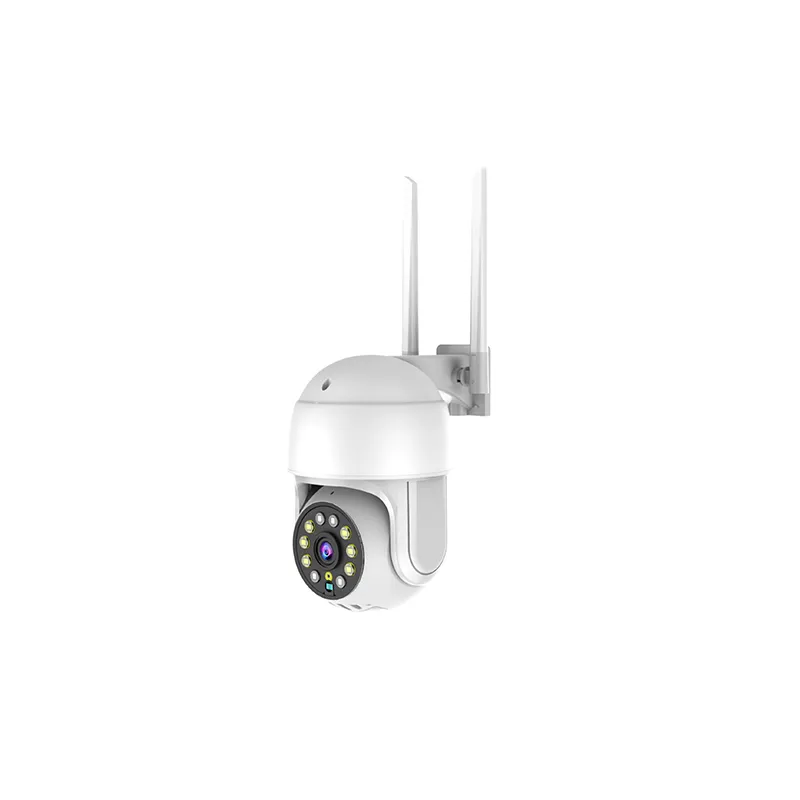

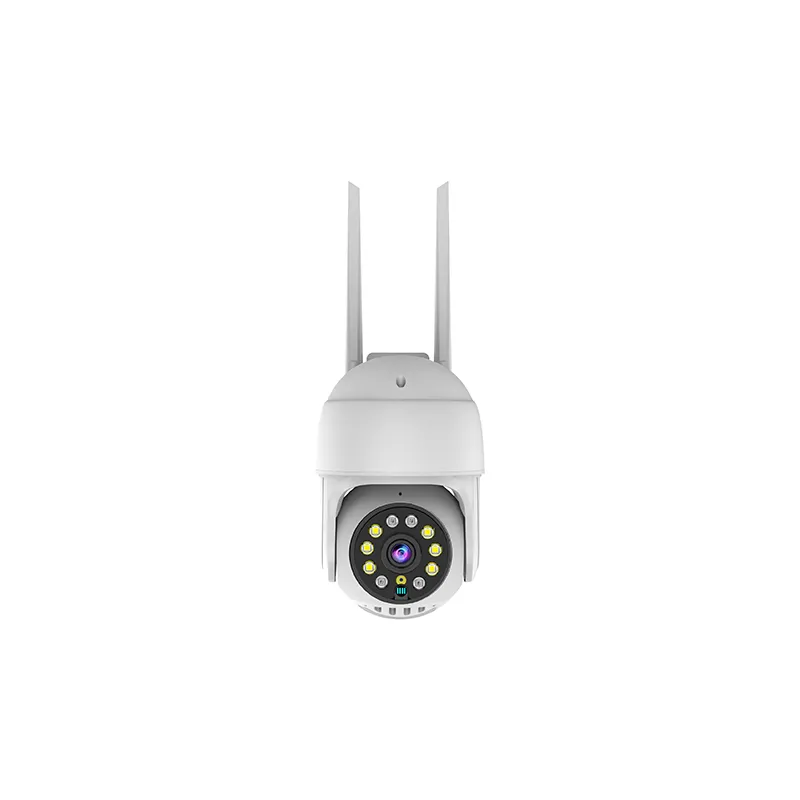

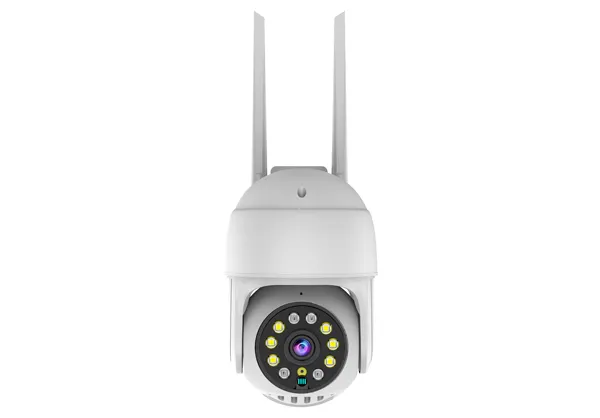

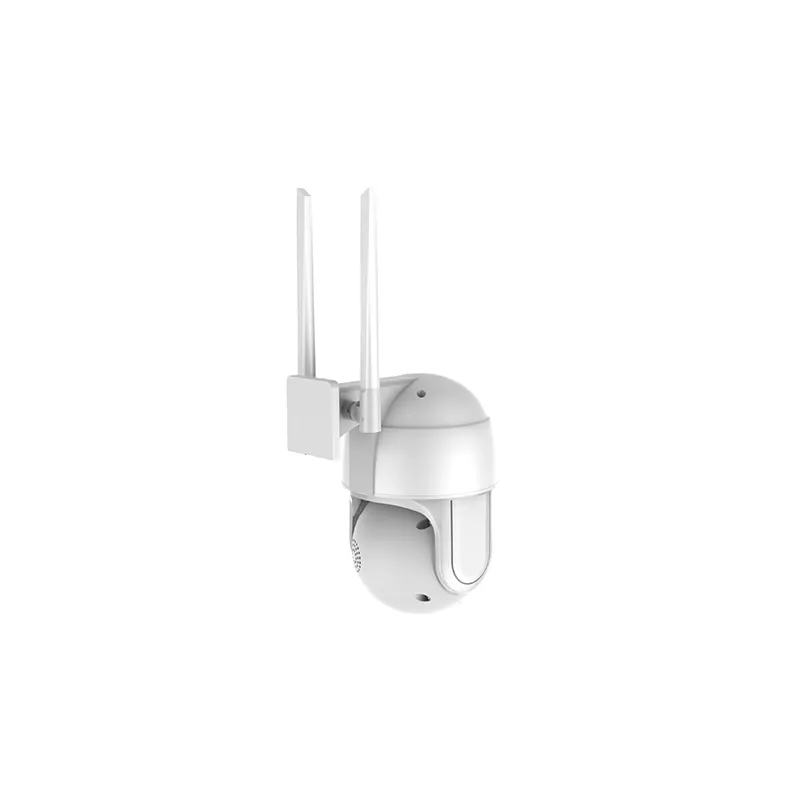

2、PTZ panorama: Network dome camera, up, down, left and right free rotation, panoramic perspective monitoring and all-round tracking care.
3、Full color night vision: Automatically increase brightness to capture details, full-color images to continuous protection day and night.
4、Cloud Storage: Support cloud storage function 7 * 24 hours, you can record without network and replay HD video at any time.
5、Waterproof and dustproof: Industrial grade ABS material, sturdy and durable, with IP66 waterproof structure design to ensure it can be used in any environment.

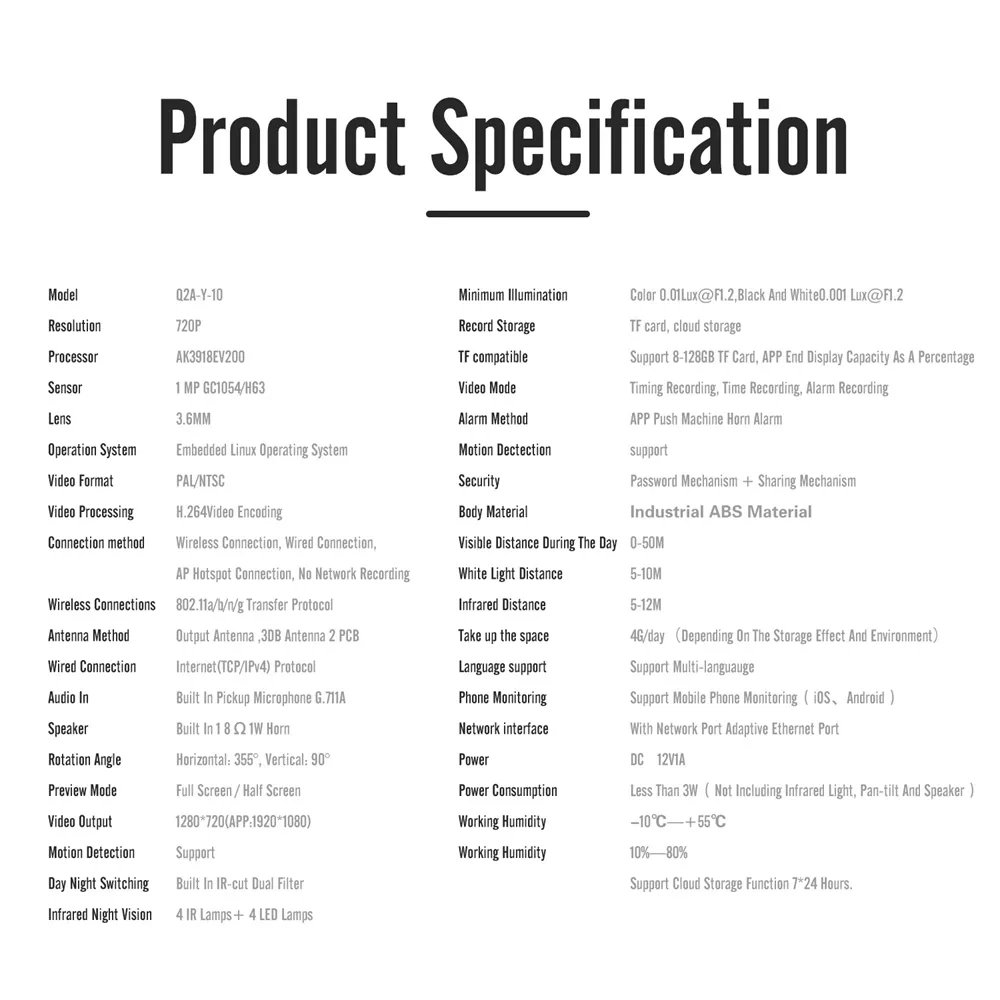

| Basic Parameters | |
| Model Number: | IPC-Q2A-Y-10 |
| Processor: | AK3918EV200 |
| Sensor: | 1 MP SC2336 |
| Lens: | 3.6MM |
| Connection: | Wired connection, wifi connection, AP hotspot connection |
| Intercom: | Two-way video |
| PTZ angle: | Horizontal 355° Vertical 90° |
| Optics | |
| Video coding: | H.264 |
| Antenna mode: | External antenna, Two 3DB antennas |
| Day and night switch: | Built-in IR-CUT double filter |
| Infrared night vision: | 5 infrared lights, 5 white lights |
| TF compatible: | Support 8-128GB TF card, APP display capacity percentage |
| Feature: | APP push, machine horn alarm, motion detection, video recording |
| Night vision distance: | 5-12 meters |
| Other Attributes | |
| Warranty: | 1 Year |
| Place of Origin: | Guangdong China |
| Brand Name: | IK |
| Certification: | CE, ROHS, FCC |
| OEM/ODM: | Support Custom |
| Power source: | DC 12V1A |
| Power dissipation: | Less than 3W (without infrared light and PTZ and loudspeaker) |
