| Effective pixel: | 1 MP |
| Processor: | HC1703L |
| Sensor: | 1 MP SC1346 |
| Lens: | 3.6MM |
| Connection: | wifi connection, Wired connection, AP hotspot connection |
| Intercom: | Two-way intercom |
| PTZ angle: | Horizontal 355° Vertical 90° |
| APP: | iCam365/YCC365 |
1、Intelligent detection: It can Intelligent recognition, track the movement trajectory of objects, proactively issue warnings and push alarm information to mobile phones.

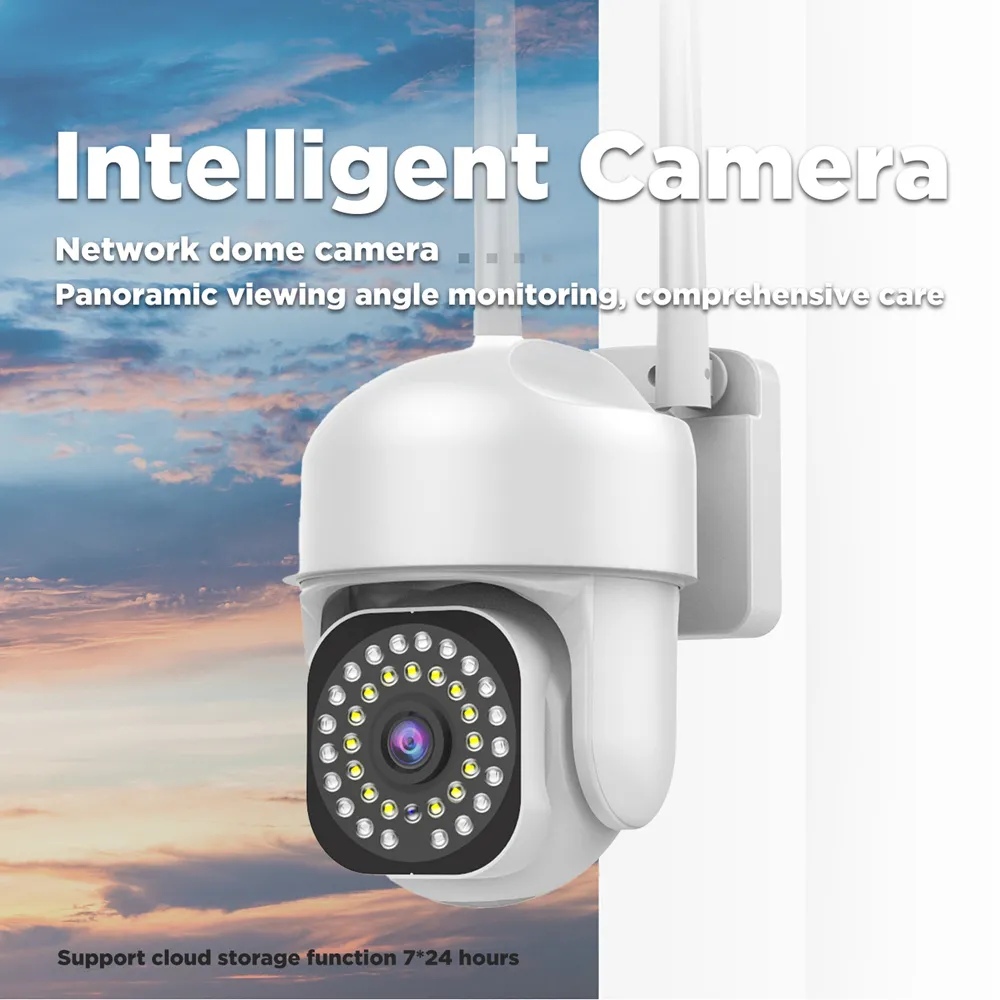

2、PTZ panorama: Network dome camera, up, down, left and right free rotation, panoramic perspective monitoring and all-round tracking care.
3、Full color night vision: Automatically increase brightness to capture details, full-color images to continuous protection day and night.
4、Cloud Storage: Support cloud storage function 7 * 24 hours, you can record without network and replay HD video at any time.
5、Waterproof and dustproof: Industrial grade ABS material, sturdy and durable, with IP66 waterproof structure design to ensure it can be used in any environment.
| Basic Parameters | |
| Model Number | IK-Q2A-S36 |
| Processor | HC1703L |
| Sensor | 1 MP SC1346 |
| Lens | 3.6MM |
| Connection | Wired connection, wifi connection, AP hotspot connection |
| Intercom | Two-way video |
| PTZ angle | Horizontal 355°, Vertical 90° |
| APP | iCam365/YCC365 |
| Optics | |
| Video coding | H.264 |
| Antenna mode | External antenna, Two 3DB antennas |
| Day and night switch | Built-in IR-CUT double filter |
| Infrared night vision | 18 infrared lights, 18 white lights |
| TF compatible | Support 8-128GB TF card, APP display capacity percentage |
| Feature | APP push, machine horn alarm, motion detection, video recording |
| Night vision distance | 5-12 meters |
| Other Attributes | |
| Warranty | 1 Year |
| Place of Origin | Guangdong China |
| Brand Name | IK |
| Certification | CE, ROHS, FCC |
| OEM/ODM | Support Custom |
| Power source | DC 12V1A |
| Power dissipation | Less than 3W (without infrared light, PTZ, and loudspeaker) |
