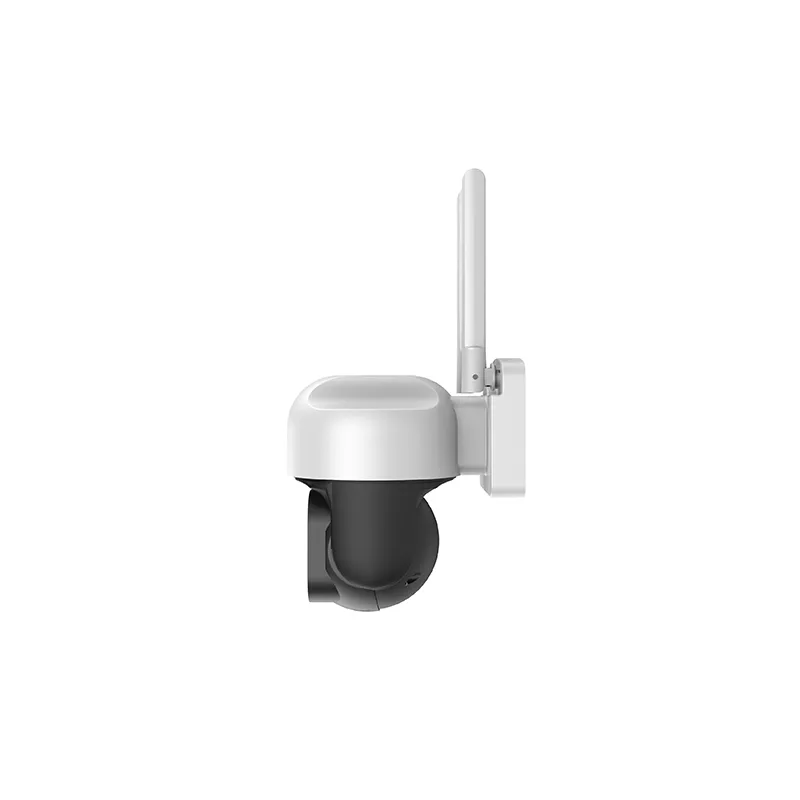

| Effective pixel: | 1 MP |
| Processor: | HC1703L |
| Sensor: | 1 MP SC1346 |
| Lens head: | 3.6MM |
| Connection: | wifi connection, AP hotspot direct connection |
| Intercom: | two-way intercom |
| PTZ angle: | horizontal 355° vertical 90° |
| APP: | iCam365/YCC365 |
1、Intelligent Detection: It can Intelligent recognition, track the movement trajectory of objects, proactively issue warnings and push alarm information to mobile phones.
2、Two-way Voice: Via WiFi/AP hotspot, configure the microphone and the speaker, supports two-way voice intercom, you can chat anytime and anywhere.
3、Full color Night Vision: Automatically increase brightness to capture details, full-color images to continuous protection day and night.
4、Cloud Storage: Support cloud storage function 7 * 24 hours, you can record without network and replay HD video at any time.
5、Waterproof and Dustproof: Industrial grade ABS material, sturdy and durable, with IP66 waterproof structure design to ensure it can be used in any environment.
| Basic Parameters | |
| Model Number: | IK-Q06 |
| Processor: | HC1703L |
| Sensor: | 1 MP SC1346 |
| Lens head: | 3.6MM |
| Connection: | wifi connection, AP hotspot direct connection |
| Intercom: | Two-way video |
| PTZ angle: | Horizontal 355° Vertical 90° |
| APP: | iCam365/YCC365 |
| Optics | |
| Video coding: | H.264 |
| Antenna mode: | Built-in antenna (2.45G dual-band antenna) |
| Day and night switch: | Built-in IR-CUT double filter |
| Infrared night vision: | 6 infrared lights |
| Storage function: | Local TF (8-128GB) storage/cloud recording |
| Feature: | APP push, machine horn alarm, motion detection, video recording |
| Power source: | DC 5V2A |
| Power dissipation: | Less than 4W (without infrared light and PTZ and loudspeaker) |
| Other Attributes | |
| Warranty: | 1 Year |
| Place of Origin: | Guangdong China |
| Brand Name: | IK |
| Certification: | CE, ROHS, FCC |
| OEM/ODM: | Support Custom |
| Item size: | 112*85*210MM |
| Item weight: | 0.22KG |
