| SOC: | Allwinner H616 |
| CPU: | Quad core ARM Cortex-A53 |
| GPU: | Mali-G31, OpenGL 1.0, 2.0, 3.2, Vulkan 1.1, OpenCL 2.0 |
| DRAM: | 1GB/2GB |
| Flash: | 8GB/16GB/32GB |
| OS: | Android 10.0 |
| Ethernet: | 100M |
| WIFI: | 802.11 a/b/g/n/ac/ax(2.4G+5G+Wi-Fi 6+BLE) |
1.Stable Android 10 Operating System
Runs Android 10, good compatibility for most streaming applications, ideal for mass‑market deployment.
2.Allwinner H616 Quad‑core Processing Performance
Quad‑core Cortex‑A53 CPU together with Mali‑G31 GPU, offers reliable performance for daily media decoding and system operation.
3.Wi‑Fi 6 & BLE Wireless Connectivity
2.4G/5G dual‑band Wi‑Fi 6 plus BLE brings steady wireless connection, convenient for pairing various peripheral devices.
4.Configurable RAM and Flash Storage
Multiple memory options to match different project budgets, flexible for wholesale and customized requirements.
5.Rich Interfaces for Wide Compatibility

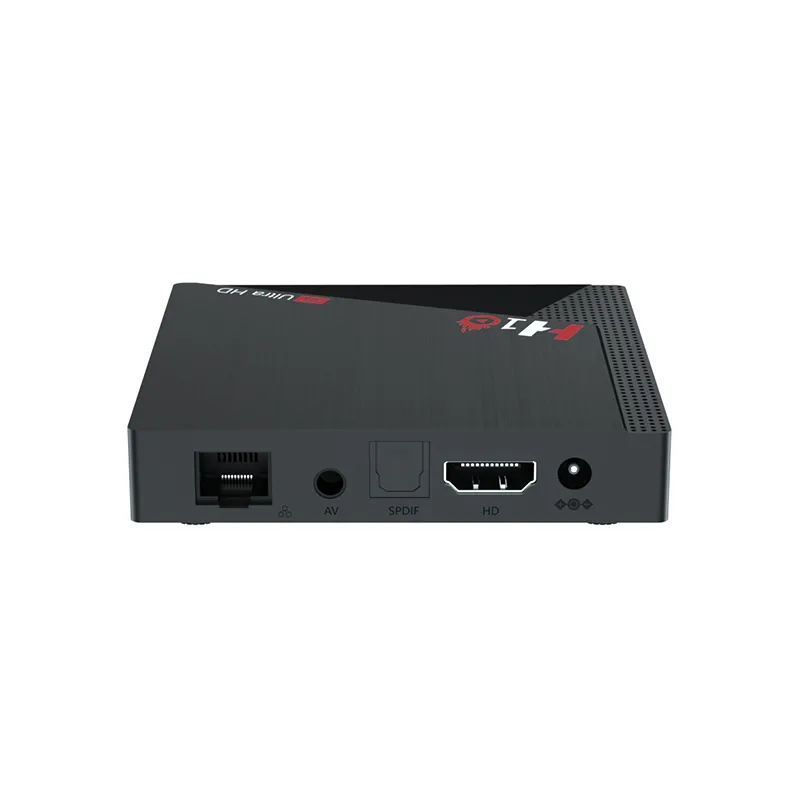

Comes with HDMI2.0a, AV, optical audio, USB and TF‑card slot, supports connection with old‑style TVs, speakers and external storage devices.
| Basic Parameters | |
| Model Number | H10 |
| Processor | Allwinner H616 |
| Processor Core | Quad core ARM Cortex-A53 up to 1.5GHz, HDR10 |
| DRAM | 1GB/2GB |
| Flash | 8GB/16GB/32GB |
| Operation System | Android 10.0 |
| WIFI | 802.11 a/b/g/n/ac/ax(2.4G+5G+Wi-Fi 6+BLE) |
| Ethernet | 100M |
| I/O | |
| Video/Audio Input | HDMI 2.0a, AV (LR+CVBS) |
| Peripheral Interface | USB2.0 HOST x1, USB2.0 OTG x1, TF x1 |
| Power Interface | DC 5V@2A |
| Other Interface | IR Receiver, LED digital tube |
| Other Attributes | |
| Place of Origin | Guangdong, China |
| Support Resolution | 4K |
| Brand Name | IK |
| Type | Android Box |
| Certification | CE, ROHS, FCC |
| OEM/ODM | Support Custom |
| Warranty | 1 year |
Pictures & specifications for reference only. Contact our sales team for details.
Product Details

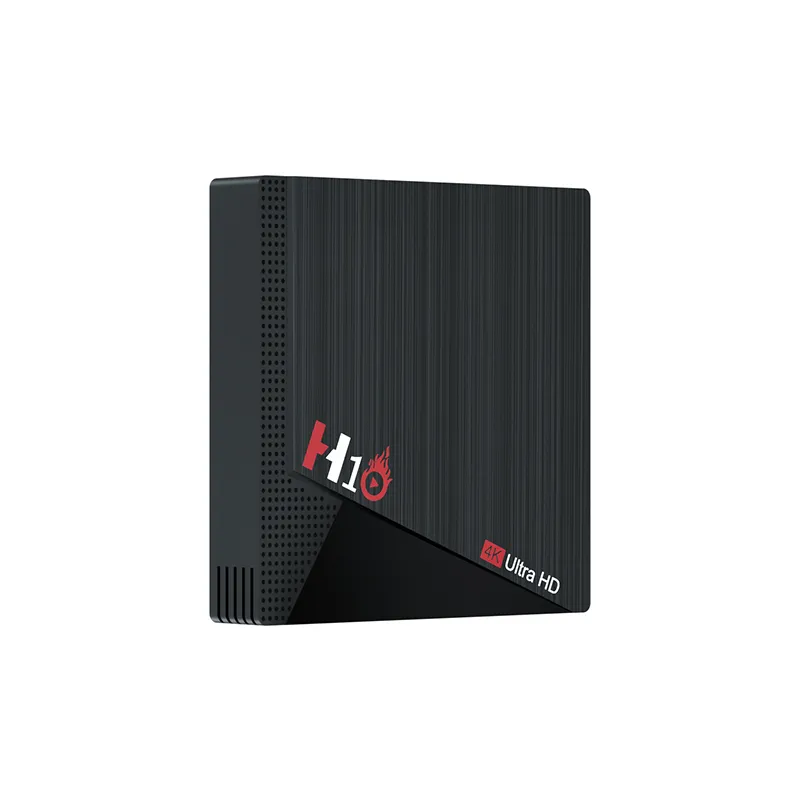

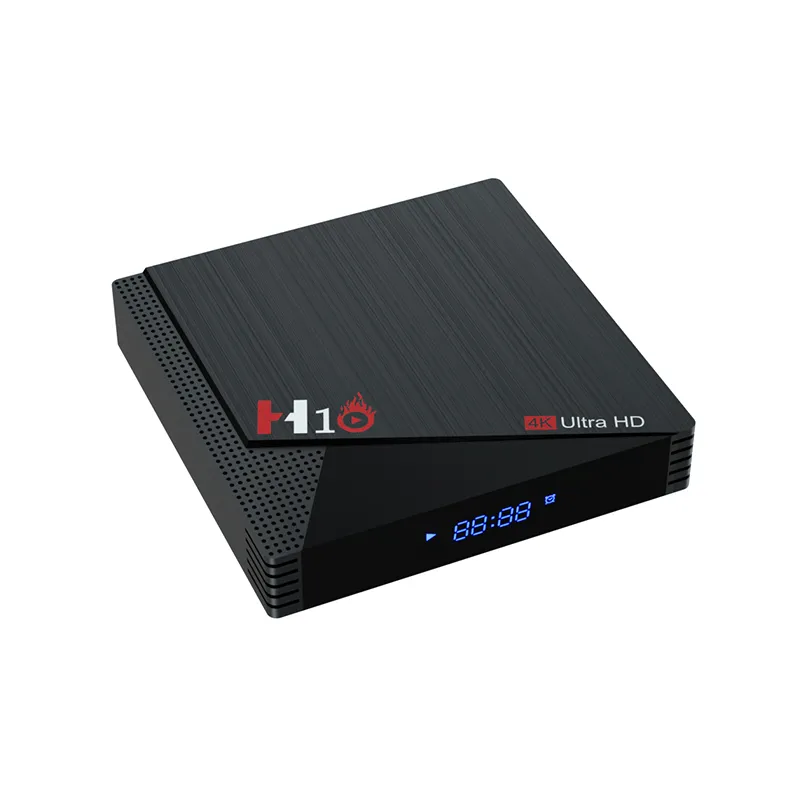

This OEM ODM wholesale 4k android tv box H10 powered by Allwinner H616 chip, the android 10 smart tv delivers reliable playback for home entertainment, rental‑house upgrades and small guesthouse projects. Equipped with Wi-Fi 6+BLE, optical audio output and LED digital tube, this factory-supply hd antenna box features H.265 4K decoding, up-to-1TB USB expandable storage and rich multimedia ports. It supports minor & in-depth OEM customization, an economical streaming hardware choice for global resellers targeting emerging markets.
1: What video decoding & output performance can I get from this streaming box?
Adopts Allwinner H616 chip solution, supports H.265 decoding up to 4K@60fps (6K@30fps decoding capability) together with VP9, AVS2 and mainstream video formats. HDMI 2.0a outputs stable 4K@60fps picture with HDR10 enhancement, bringing vivid high-definition visual effect for daily online streaming and local media playback.
2: What is the function of the LED digital display on the front panel?
The onboard LED digital tube shows real-time working status of the device. End-users can check power status without switching on the connected television. This practical hardware feature improves user experience compared with basic indicator-only android tv box models for retail sales.
3: What screen-casting protocols does this box support for multi-screen sharing?
It is built-in with Miracast, DLNA and Airplay multi-screen interactive protocols. Users can conveniently cast photos, local videos and online streaming content from mobile phones or laptops to TV screens. The casting function fits family sharing scenarios for home entertainment projects.
4: What size & file formats of USB external drive can this streaming device recognize?
USB port supports external storage up to 1TB, compatible with FAT16, FAT32 and NTFS file systems. Mass offline video resources and applications can be saved on external drives, which brings great practical value for regions with unstable broadband network conditions.
5: Does the unit come with those listed applications pre-installed out-of-box?
This unit ships with clean Android 10 system. Applications such as YouTube, Kodi and Facebook can be manually downloaded from application stores by end-users.
1: What is the difference between minor customization and in-depth ODM work? How about the minimum order quantity?
We support two tiers of customization. Minor customizations such as logo printing, boot‑up animation, preset multi-language settings normally start at 500 units with little extra development cost. For in-depth ODM work including hardware revision, private mold, custom OTA and system lock-down, the suggested MOQ is around 5000 units. This number is not fixed; final terms shall be discussed between buyers and our sales team according to project complexity.
2: Can we pre-load our own legitimate APK files for mass production?
We deliver devices with pure clean-build system. Buyers can provide self-owned legally authorized APK for pre-installation upon OEM orders, and end‑users are also free to install applications by themselves after receiving goods. Please provide valid installation packages for mass-production arrangement.
3: Besides full finished OTT boxes, do you supply bare mainboard for local assembly?
Yes, we supply both complete finished boxes and standalone PCBA mainboards. Backed by our 15 fully-automatic SMT production lines and in-house 100-member R&D team, we can satisfy bulk-purchase and local-assembly demands from different project partners.
4: Is sample testing supported before bulk placing orders? What about sample policy?
Sample units are available for performance and compatibility verification. Sample fees can be fully refunded once your bulk order reaches corresponding MOQ. Stock samples are normally dispatched within 3-5 working days and sample firmware keeps consistent with mass‑production version.
5: What technical support can we receive after bulk goods delivery?
Our professional R&D team provides remote technical support for firmware configuration, debugging and daily operational troubleshooting under 12-month factory warranty. Our global partners, whose main customers are distributed across Southeast Asia, the Middle East and South America, can get timely after-sales assistance.
