| SOC: | Allwinner IK316/H616/H313 (K318//H618) |
| CPU: | Quad Core ARM Cortex-A53 |
| GPU: | ARM Mali-G31, OpenGL ES 1.0/2.0/3.2, Vulkan 1.1, OpenCL 2.0 |
| DRAM: | 1GB/2GB (1GB/2GB/4GB) |
| Flash: | 8GB /16GB /32GB /64GB |
| OS: | Android 10 (Android12/14) |
| Ethernet: | 100M |
| WIFI: | 802.11 a/b/g/n/ac/ax(2.4G+5G+Wi-Fi 6+BLE) |
1.Exquisite and small: The design is unique, novel and fashionable, exquisite and compact, making it easy to place in any corner.
2.Large Storage: With large RAM+large ROM, you can load more, run faster and install more of your favorite APPs.
3.High-quality Audio-visual: 4K HD video, smoother and more realistic, which make the
blockbuster look more shocking and enjoy a better picture quality experience.
4.Rich Interface: Various interfaces are convenient connection to TV, network, etc., meeting
the connection needs of different users and enriching the entertainment life.
5.Stable Performance: Equipped with 64-bit quad-core processor, high frequency and efficiency graphics processing, which makes the performance more powerful and higher-definition.
| Basic Parameters | |
| Model Number | G96-1 |
| Processor | Allwinner IK316/H616/H313 (K318//H618) |
| Processor Core | Quad Core ARM Cortex-A53 |
| DRAM | 1GB/2GB (1GB/2GB/4GB) |
| Flash | 8GB /16GB /32GB /64GB |
| Operation System | Android 10 (Android12/14) |
| WIFI | 802.11 a/b/g/n/ac/ax(2.4G+5G+Wi-Fi 6+BLE) |
| Ethernet | 100M |
| I/O | |
| Video/Audio Input | HDMI 2.X, AV (LR+CVBS) |
| Peripheral Interface | USB2.0 x2, TF x1, Update Key x1 |
| Power Interface | DC 5V@2A |
| Other Interface | IR Receiver, LED indicator |
| Other Attributes | |
| Place of Origin | Guangdong, China |
| Support Resolution | 4K |
| Brand Name | IK |
| Type | Android Box |
| Certification | CE, ROHS, FCC |
| OEM/ODM | Support Custom LOGO |
| Warranty | 1 year |
Pictures & specifications for reference only. Contact our sales team for details.
Product Details

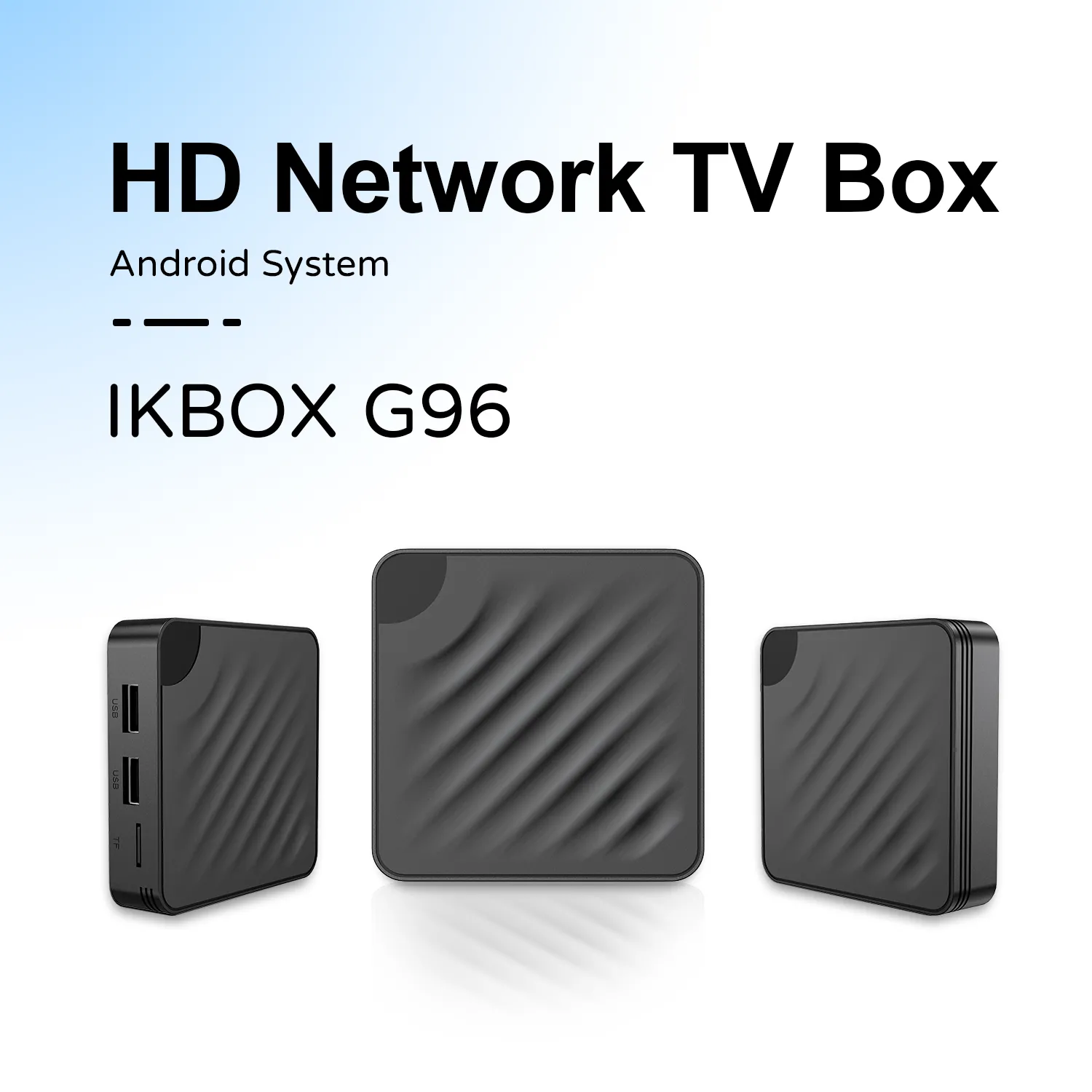

The compact IKBOX G96-1 box tv android 4k adopts Allwinner chip scheme, supporting switchable Android 10/12/14 system. This lightweight smart box hd is equipped full-format 4K decoding and dual-band WiFi 6, perfectly matching home streaming, rental houses and small-scale commercial wholesale demand, ranking as cost-effective android tv box wifi and popular among global smart tv set top box suppliers for mid-low market dealers.
1.What core chip and system options does IKBOX G96-1 provide to fit different regional market demands?
Equipped with Allwinner IK316/H616/H313 (IK318/H618 optional) quad-core Cortex-A53 CPU, paired with Mali-G31 GPU. Users can select Android 10.0 / 12.0 / 14.0 according to local app compatibility needs, max 10W low power consumption ensures stable round-the-clock video playback for daily home and rental use, standing out among mainstream android tv devices.
2.What decoding advantages help this streaming box play various local and online global video sources smoothly?
Full hardware decoding supports H.265 up to 4K@60fps, AVS2 and VP9 multi-format videos. It is compatible with hundreds of video, audio and subtitle file types, eliminating format unplayable issues for end users watching downloaded media or overseas streaming resources, one of the most practical media streaming devices for budget retail.
3.How does the complete wireless network setup guarantee smooth 4K streaming under complex household network environments?
This android tv box wifi comes with 2.4G+5G dual-band WiFi 6 plus Bluetooth 5.X, matched with 100M wired Ethernet. Strong signal anti-interference avoids buffering when multiple mobile devices connect the same router, delivering lag-free high-definition streaming all day long.
4.What expandable storage ways are available for offline media and third-party APK storage on G96-1?
It carries TF card slot and dual USB 2.0 ports, supporting external storage up to 32GB with FAT16/FAT32/NTFS compatibility. Users can store mass offline films and streaming apps separately, plus USB & online dual OTA upgrade to keep the system running smoothly long-term.
5.What diverse display & audio devices can this box tv android 4k connect through its rich reserved interfaces?
Interface layout includes HDMI 2.0, AV port, dual USB2.0, TF slot and IR output jack. HDMI 2.0 outputs lossless 4K images to modern smart TVs, while AV jack realizes connection with old analog televisions, covering all mainstream home display and audio equipment.
1.What MOQ is required if i need custom firmware, boot logo and preloaded local APP
OEM orders with customized firmware, boot screen logo and pre-installed regional native apps require a minimum order quantity of 1000 units. For stock blank units without any system modification, the MOQ is only 100 units, and small trial orders under 50 pieces are acceptable with extra service cost. We supply full ODM modification service for all bulk purchasers of this smart tv set top box.
2.Is IKBOX G96-1 qualified for mass procurement of guesthouses and long-term rental apartments?
All finished units pass 4-hour continuous aging test before shipment, with stable performance within 0~40℃ working temperature. Low heat generation and low power consumption make it an economical choice for continuous video playback in hospitality and shared accommodation scenes, a reliable option among entry-level media streaming devices.
3.What flexible RAM and Flash combinations can distributors select for differentiated sales channels?
Configurable specs for IKBOX G96-1: RAM optional 1GB/2GB; Flash optional 8GB/16GB/32GB/64GB. Wholesalers can collocate different memory versions to separate entry-level retail and medium commercial customer groups to control profit margins of these android tv devices.
4.Can you offer targeted certification documents and customs clearance materials for different national import standards?
Yes. We can provide corresponding test reports and certificates per your target country’s rules, support applying CE, UKCA, FCC, PSE, KC regional certifications at client’s cost, and deliver complete invoice, packing list for hassle-free customs clearance.
5.What factory after-sales and marketing support can partners obtain for bulk orders of this streaming device?
We allow mixed container loading for multi-model orders, provide 12-month whole machine warranty, free HD product pictures & demo videos, and 6-day weekly online engineer technical support to lower your overall purchasing and operating costs.
