| SOC: | Amlogic S905X5M (Amlogic S905Y5) |
| CPU: | Quad Core ARM Cortex-A55 |
| GPU: | ARM Mali,Mali-G310 V2 (ARM Mali,Mali-G31 MP2) |
| DRAM: | 1GB /2GB/4GB |
| Flash: | 8GB /16GB /32GB /64G |
| OS: | Android 14.0 |
| Ethernet: | 100M |
| WIFI: | 802.11 a/b/g/n/ac/ax(2.4G+5G+Wi-Fi 6+BLE) |
1.Lag-free operation with new flagship chipset：
Powered by Amlogic S905X5M quad-core Cortex-A55 chip and Android 14.0 OS, it runs multiple apps smoothly without lag during daily streaming
2.Full 4K hardware decoding for smooth video：
Advanced graphic processing delivers sharp, fluent ultra HD frames, offering immersive movie and video watching experience
3.Stable dual-band network & fast Bluetooth connection：
Equipped with 2.4G+5G WiFi 6 BLE and 100M Ethernet, it avoids video buffering and supports steady wireless device connection
4.Full-range ports for all external devices：
Complete multi-functional ports connect TVs, USB drives and audio peripherals, covering all daily entertainment connection demands
5.Customizable RAM & storage for diverse markets：
Optional 1/2/4GB DRAM and 8/16/32/64GB Flash, flexible configurations to fit retail sales and OEM customization needs
| Basic Parameters | |
| Model Number | G94 |
| Processor | Amlogic S905X5M (Amlogic S905Y5) |
| Processor Core | Quad Core ARM Cortex-A55 |
| DRAM | 1GB /2GB/4GB |
| Flash | 8GB /16GB /32GB /64G |
| Operation System | Android 14.0 |
| WIFI | 802.11 a/b/g/n/ac/ax(2.4G+5G+Wi-Fi 6+BLE) |
| Ethernet | 100M |
| I/O | |
| Video/Audio Input | HDMI 2.X, AV (LR+CVBS) |
| Peripheral Interface | USB2.0 x2, TF x1, Update Key x1 |
| Power Interface | DC 5V@2A |
| Other Interface | IR Receiver, LED indicator |
| Other Attributes | |
| Place of Origin | Guangdong, China |
| Support Resolution | 4K |
| Brand Name | IK |
| Type | Android Box |
| OEM/ODM | Support Custom LOGO |
| Warranty | 1 year |
Pictures & specifications for reference only. Contact our sales team for details.
Product Details

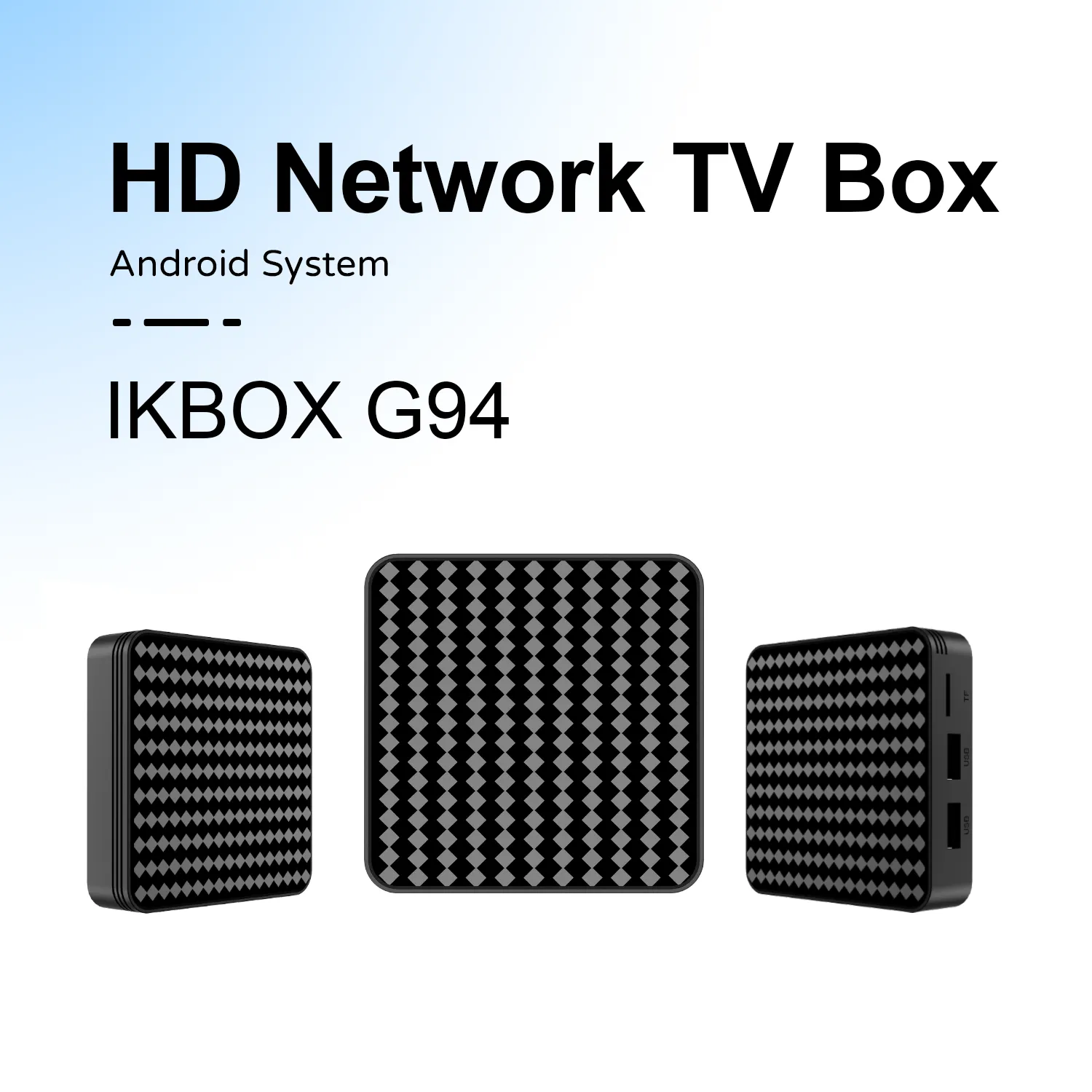

This OEM ODM streaming hardware, model G94, is a compact cable box for tv built for global distributors and household streaming users. It supports two chip schemes (Amlogic S905X5M / S905Y5), preloaded Android 14 and 4K hardware decoding. Equipped with dual USB ports and heat-dissipation textured shell, it offers flexible memory options and customizable services, perfect for merchants sourcing customizable streaming devices.
1: What dual chip solutions keep streaming hardware like G94 running stably for bulk wholesale?
G94 provides two optional chips: budget-friendly Amlogic S905X5M and enhanced S905Y5, both paired with quad-core Cortex-A55 CPU and Mali-G310 V2 GPU running native Android 14. The dual-chip design lets distributors split entry-level and premium product lines without changing hardware housing, a flexible solution for mass shipment of household streaming gear.
2: What decoding specs deliver vivid ultra-high-definition playback on this android tv box?
Its built-in hardware decoder supports H.265 4K@60fps, VP9 and AVS2 mainstream formats, fully compatible with global mainstream streaming platforms. Stable 4K image output meets diverse retail market demands for wholesale streaming hardware inventory.
3: How do Wi-Fi 6 and Bluetooth 5.X eliminate lag during daily media playback?
Dual-band 2.4G+5G Wi-Fi 6 works with Bluetooth 5.X to boost transmission speed and anti-interference capacity. Smooth wireless connection serves merchants distributing streaming devices to Europe, Southeast Asia and Middle East markets.
4: How does G94’s grid textured shell optimize continuous playback performance for this set box smart tv?
The special grid surface expands heat dissipation area for passive cooling, effectively avoiding overheating during long-hour streaming. Paired with only 10W maximum power consumption, it maintains steady performance for all-day home media playback.
5: What mini-sized complete interfaces support diversified OEM customized firmware development?
The compact 82mm82mm18mm body carries HDMI 2.0, dual USB 2.0 (HOST+OTG), AV, TF card slot, IR receiver & IR out and 100M Ethernet. The slim profile fits narrow spaces behind televisions, while the IR out port supports unified remote control for custom home streaming firmware development.
1.Can I customize brand logos, boot animations and pre-installed apps when placing bulk orders of this streaming hardware?
Absolutely. We deliver full ODM customization covering shell & packaging logo printing, startup screen modification and regional streaming APP preloading. Simple custom orders start at 500 units, deep hardware & firmware development requires 5000 units, backed by our nearly 100-member full R&D team.
2.Is the G94 mini streaming hardware suitable for small-scale retail bulk orders targeting household entertainment?
Yes. Long-hour stable playback, comprehensive interface layout, tiny dimension and low power draw make G94 a cost-effective choice for global retailers supplying home streaming equipment.
3.What functional differences exist between the S905X5M and S905Y5 chip variants of G94?
The S905X5M edition focuses on cost control for mass basic retail orders. The upgraded S905Y5 version delivers stronger computing power and supports AV1 decoding for high-end consumer markets. Both share identical casing and peripheral ports to simplify your stock management.
4.When deploying batches of G94 devices for family streaming use, what’s the maximum storage expandable via USB drives?
This streaming hardware supports USB external storage up to 1TB, allowing users to store massive offline video resources locally without purchasing extra storage accessories.
5.What competitive edges can distributors gain by cooperating with us to wholesale streaming hardware?
We supply tiered quantity discounts, complete CE/FCC/UKCA certification test files and steady long-term chip supply plus one-stop packaging customization. As a 15-year intelligent hardware manufacturer and Tier 1 supplier of Alibaba and Tencent, we can provide finished streaming units and separate mainboard PCBA to lower your overall procurement and after-sales expenses.
