| SOC: | Allwinner H713M /H716 |
| OS: | Android 11.0 |
| WiFi: | 802.11 a/b/g/n/ac/ax(2.4G+5G+WiFi6+BLE) |
| Resolution: | 1920*1080P (720P Optional) |
| Brightness: | 200 ANSI lumens |
| Technique: | 2.69-inch LCD TFT display |
| Throw Ratio: | 1.3:1 |
| Focusing: | Automatic focus |
| Projection Size: | 40-140 inch |
1.Native 1080P HD Viewing
Adopting 2.69‑inch LCD optical module with native 1080P resolution and 200ANSI brightness. It delivers 40‑140‑inch large‑screen projection for home movies & streaming, bringing clear detailed visuals for daily home entertainment.
2.Automatic All‑round Projection Adjustment
Auto focus, auto keystone correction, obstacle avoidance and auto screen alignment are supported. It handles ±30° off‑axis projection, compatible with front/rear/ceiling projection modes. Get well‑framed pictures quickly without tedious manual tuning.
3.Low‑noise Immersive Viewing
Fan noise as low as 32dB for quiet operation. Built‑in 3W speaker offers decent audio output. You can enjoy night‑time movie time without distracting fan noise.
4.Feature‑rich Android 11 System
Runs Android 11 OS with Wi‑Fi 6 & BLE. Supports voice control and 4K@30fps H.265 decoding. Equipped with HDMI‑IN and multiple USB ports, convenient for streaming apps and local media playback.

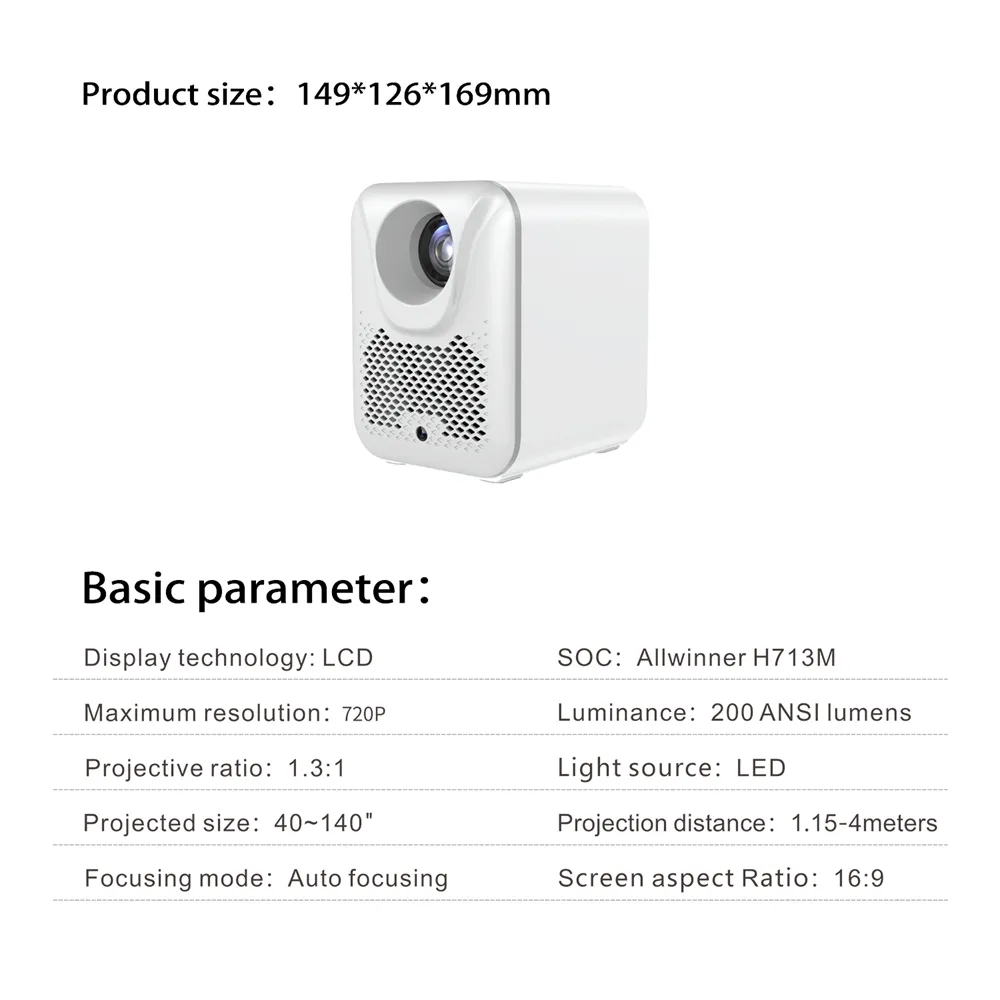

| Basic Parameters | |
| Model Number: | A2 |
| Processor: | Allwinner H713M /H716 |
| CPU: | Quad core ARM Cortex-A53 |
| GPU: | Mali-G31,OpenGL3 .2,Vulkan1 . 1,OpenCL2 .0 |
| RAM: | 1GB/2GB |
| ROM: | 8GB/16GB/64GB |
| Operation System: | Android 11.0 |
| WIFI: | 802.11 a/b/g/n/ac/ax(2.4G+5G+WiFi6+BLE) |
| Optics | |
| Technique: | 2.69-inch LCD TFT display |
| Resolution: | 1920*1080P (720P Optional) |
| Color Temperature: | 20000-25000K |
| Brightness: | 200 ANSI lumens |
| Contrast Ratio: | 1000:1 |
| Optical machine type: | Sealed Optical Engine |
| Lens: | 3 pieces glass lens |
| Throw Ratio: | 1.3:1 |
| Bulb Life: | 3000+ Hrs |
| Lamp Power: | 38W |
| Projection Distance: | 1.15~4m |
| Projection Size: | 40-140 inch |
| Fan Noise: | 32dB |
| Keystone Correction: | Automatic keystone correction |
| Focusing: | Automatic focus |
| Other Attributes | |
| Place of Origin: | Guangdong, China |
| Brand Name: | IK |
| Item size: | 149*126*169mm |
| Weight: | 1.2 kg |
| Certification: | CE, ROHS, FCC |
| Lamp: | LED |
| Side throw Angle: | ±30° |
| Warranty: | 1 year |
Pictures & specifications for reference only. Contact our sales team for details.
Product Details

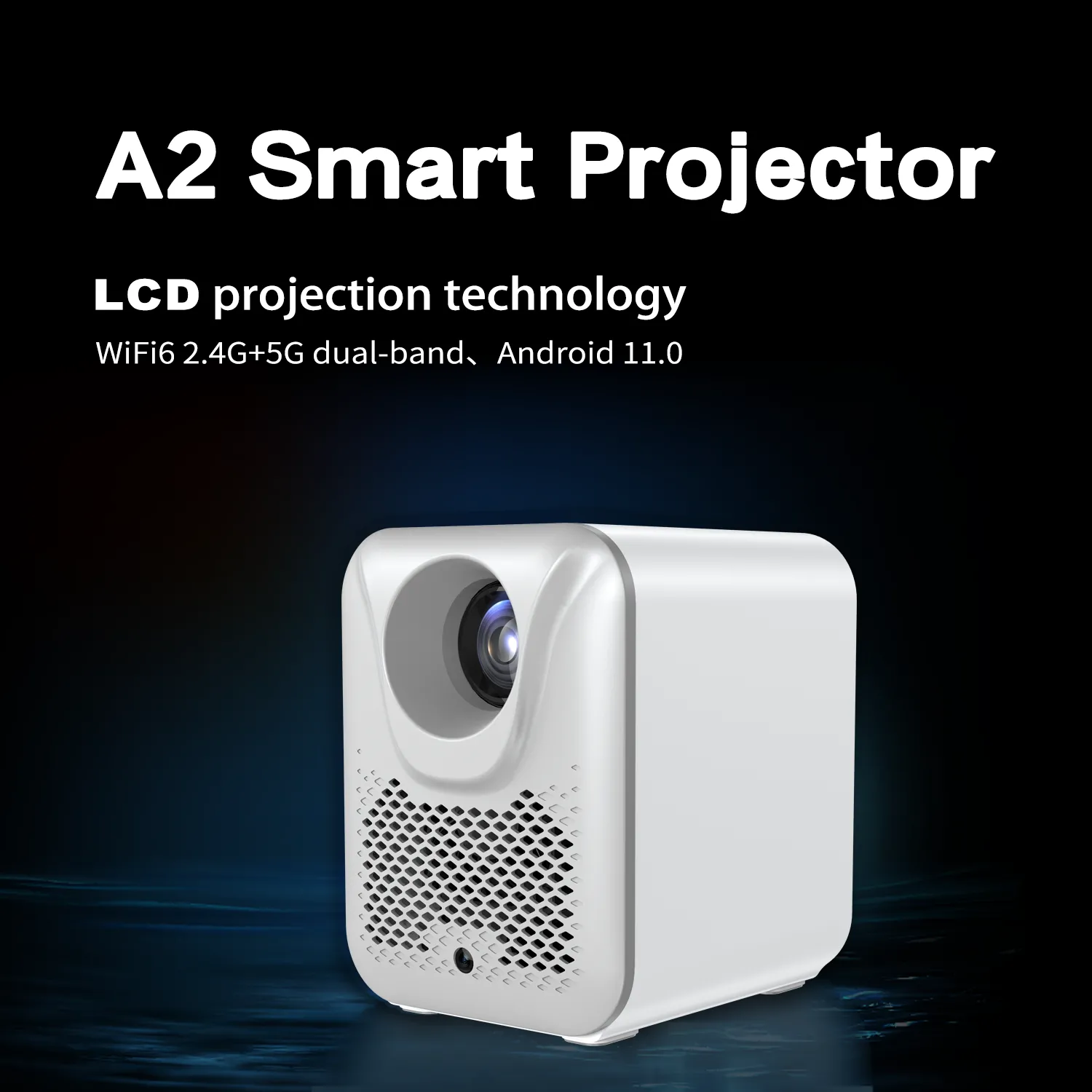

Tailored for cross‑border wholesalers and brand‑OEM partners, the Model A2 android projector delivers configurable native‑resolution options: true 1080P or 720P. This home theater projector adopts a fully‑enclosed optical engine with coated 3‑piece lens, equipped with auto‑focus and auto‑keystone correction. It runs Android 11.0, supports 4K@30fps H.265 decoding, boasts a 30000+‑hour LED light source, Wi‑Fi 6 + BLE connectivity and rich‑set ports. Verified hardware specs and low‑MOQ OEM services for logo, boot‑screen and packaging customization are available. Complex ODM modification requires higher order volumes for global retail inventory.
1: Why does dust‑proof optical design bring long‑term benefits for wholesale resellers?

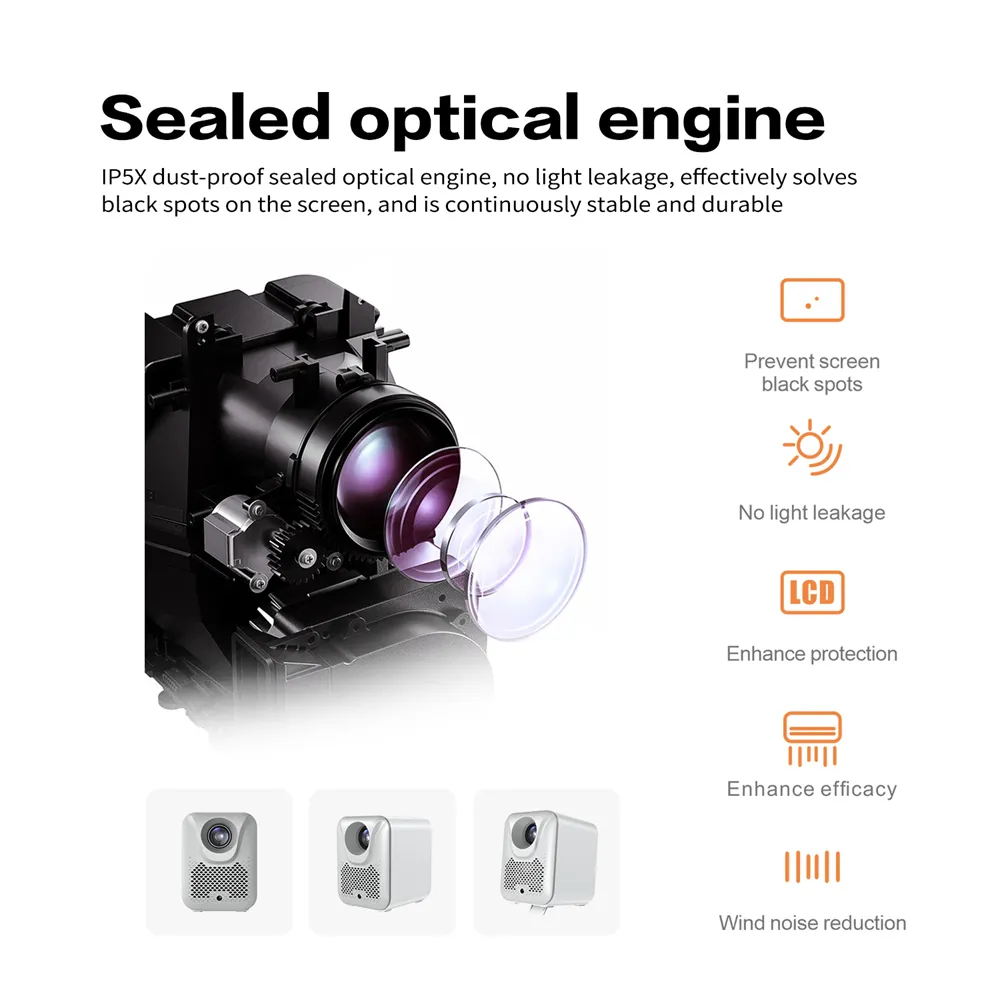

This 4k video projector features a fully‑enclosed optical structure to prevent dust intrusion, a major root‑cause of premature projector failure. It offers 200 ANSI‑lumens brightness, 1000:1 contrast ratio and 30000+ hours LED lifespan, with ±30° side‑throw capability for flexible placement. Durable optical assembly effectively cuts failure rates and reduces after‑sales burdens for merchants stocking this **small projector**.
2: What resolution & correction options are available for Model A2?
Buyers can select either native 720P or native 1080P hardware resolution for this room projector. Auto‑keystone correction and auto‑focus come onboard to fix skewed frames and blurry output. Multiple projection modes including front‑throw, rear‑throw and ceiling mounting are supported. Different resolution choices give distributors flexibility to match diverse target‑market budgets and target projector price tiers for end‑users.
3: What smart‑feature set elevates usability for daily home‑scene projection?
Auto‑focus, auto keystone correction, intelligent obstacle avoidance and automatic screen alignment remove cumbersome manual adjustments. Voice recognition is built‑in for convenient local control of this movie projector. These user‑friendly features help reduce pre‑sales consultation workload for resellers.
4: How do noise‑reduction and wireless capabilities improve end‑user experience?

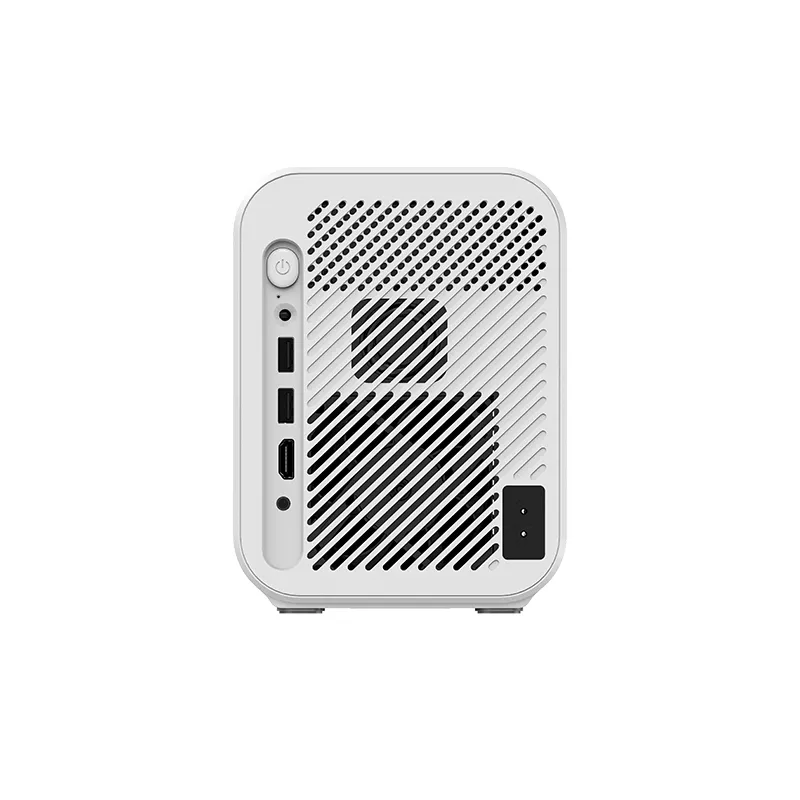

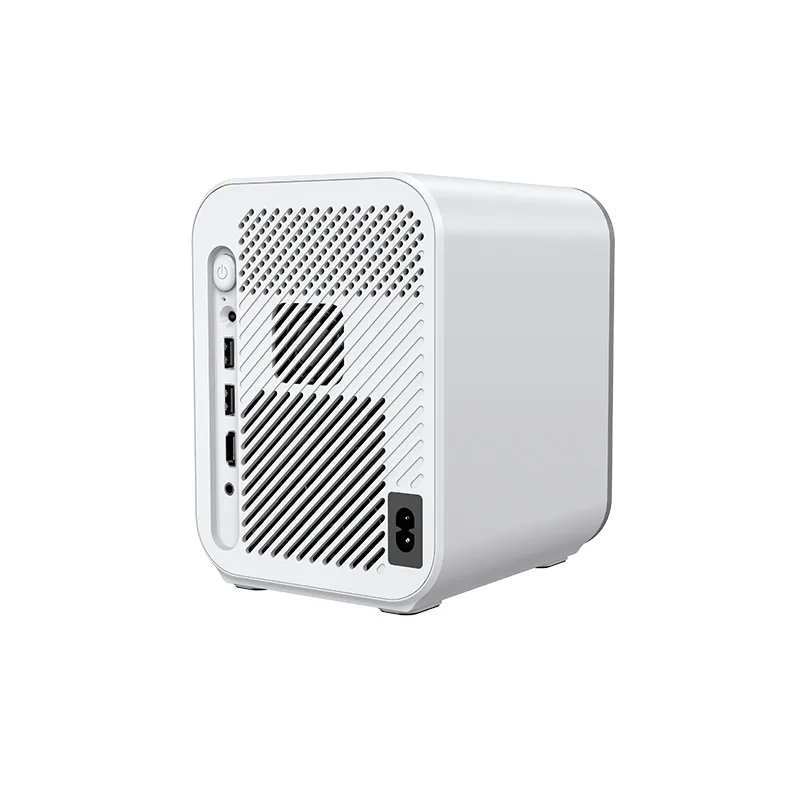

Fan noise is controlled at 32dB for quiet playback. As a wireless projector, it integrates Wi‑Fi 6 and BLE Bluetooth for lag‑free streaming and peripheral pairing. Interfaces include HDMI‑IN, dual USB2.0 and LINE‑OUT audio port. 100‑240V wide‑voltage power fits most global power grids, enabling one unified SKU for multi‑region sales.
5: What expandability and custom‑boundary should OEM purchasers understand?
Dual USB2.0 ports support high‑capacity external storage for offline media playback. USB local upgrade and OTA firmware update are supported. Simple OEM customizations such as brand logo, boot‑up screen and packaging can be fulfilled at lower MOQ. Heavy‑duty ODM rework demands significantly larger order volumes, buyers shall confirm requirements with sales beforehand.
1. What simple OEM customizations can we get for bulk orders?
We support logo printing, boot‑screen modification and packaging customization under standard OEM MOQ. Complex ODM hardware/firmware rework requires much higher order quantity. Please contact sales for exact thresholds and costs.
2. Can we get technical documentation support during OEM project roll‑out?
Yes. We supply core technical documents for qualified OEM buyers. Deep firmware debugging belongs to ODM scope and will trigger extra engineering fees and longer lead‑time.
3. What certification supporting documents can you provide for overseas market clearance?
CE and RoHS documents are provided for standard units. Supporting materials for FCC, UKCA, KC can be supplied. If we apply certifications on your behalf, additional fees and extended lead‑time will apply.
4. What is the spare‑parts supply arrangement after bulk purchase?
Core components are kept in stock for Model A2. Spare‑parts can ship together with mass goods or be delivered separately. Lead‑time depends on part types and order quantity.
5. Can you provide marketing assets for product listing?
We provide standard marketing materials including rendered product images, posters and videos. For additional customized assets, please negotiate further details with our sales team.
6. How does sample application work, and can sample cost be deducted from mass‑order payment?
Sample orders are acceptable. Buyer covers sample cost and shipping fees. Sample expense can be deducted from your subsequent bulk purchase.
