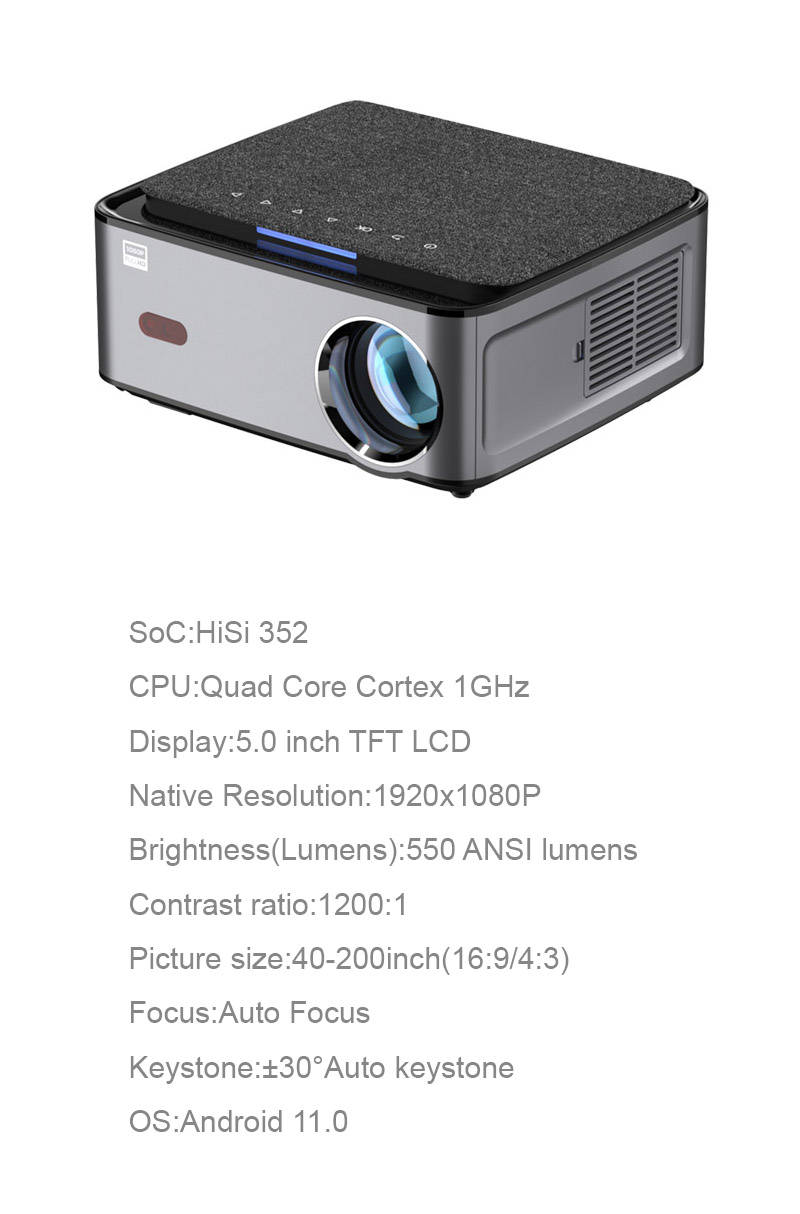

| SOC： | HiSi 352 |
| CPU: | Quad Core Cortex 1Ghz |
| OS： | Android 11.0 |
| Resolution: | 1920*1080P |
| Brightness: | 550 ANSI lumens |
| Technique: | 5-inch LCD TFT display |
| Contrast ratio： | 1200:1 |
| Focusing: | Auto focus |
| Keystone: | +30°Auto keystone |
| Projection Size: | 40-200 inch(16:9/4:3) |
1.Ultra clear picture quality: Using optical coated glass lens, support for a full HD resolution of 1920*1080p, the details of the picture are rich, and the reduction of the character's skin color and the presentation of the details are very natural.
2.Immersive viewing: The speaker function uses dual-channel cavity high-fidelity sound effects, fully enclosed design, effectively reduce noise, bring you a more immersive viewing experience.
3.Automatic correction: The picture is automatically focused and trapezoidal correction, and immediately clear. In the process of use, if the machine senses movement or displacement, automatic trapezoidal correction and automatic focus will be carried out in real time, so that the machine can keep a clear picture at all times.
4.Brightness luminal：It has 550 ANSI lumens, the projection picture has high saturation, mild color without distortion, even in a bright environment can also ensure a clear and bright picture effect.
5.High quality performance: equipped with Hisi 352 and 11.0 system, with dustproof projector of active cooling system, it has safer operation and more stable performance.
6.Sealed optical engine: The industry-leading closed light machine design is adopted to prevent the light, dust, smoke and other external interference factors on the projection picture, and effectively solve the screen black spot.
| Basic Parameters | |
| Model Number： | P5 |
| Processor： | HiSi 352 |
| DRAM： | 1GB |
| Flash： | 8GB |
| Operation System | Android 11.0 |
| WIFI： | 802.11 a/b/g/n/ac/ax(2.4G+5G+WiFi6+BLE) |
| Optics | |
| Technique： | 5-inch LCD TFT display |
| Resolution： | 1920*1080P |
| Brightness： | 550 ANSI lumens |
| Contrast Ratio： | 1200:1 |
| Optical machine type: | Sealed Optical Engine |
| Lens： | 3 pieces glass lens |
| Throw Ratio： | 1 . 39:1(@100inch) |
| Bulb Life： | >20000 Hrs |
| Lamp Power： | 110W |
| Item Size： | 260*230*110mm |
| Projection Distance： | 1.3m~5m |
| Projection Size： | 40-200 inch(16:9/4:3) |
| Keystone Correction： | Automatic keystone correction |
| Focusing： | Automatic focus |
| Other Attributes | |
| Place of Origin： | Guangdong, China |
| Power Consumption： | 135W |
| Certification： | CE,ROHS,FCC |
| Warranty： | 1 years |
Product Details

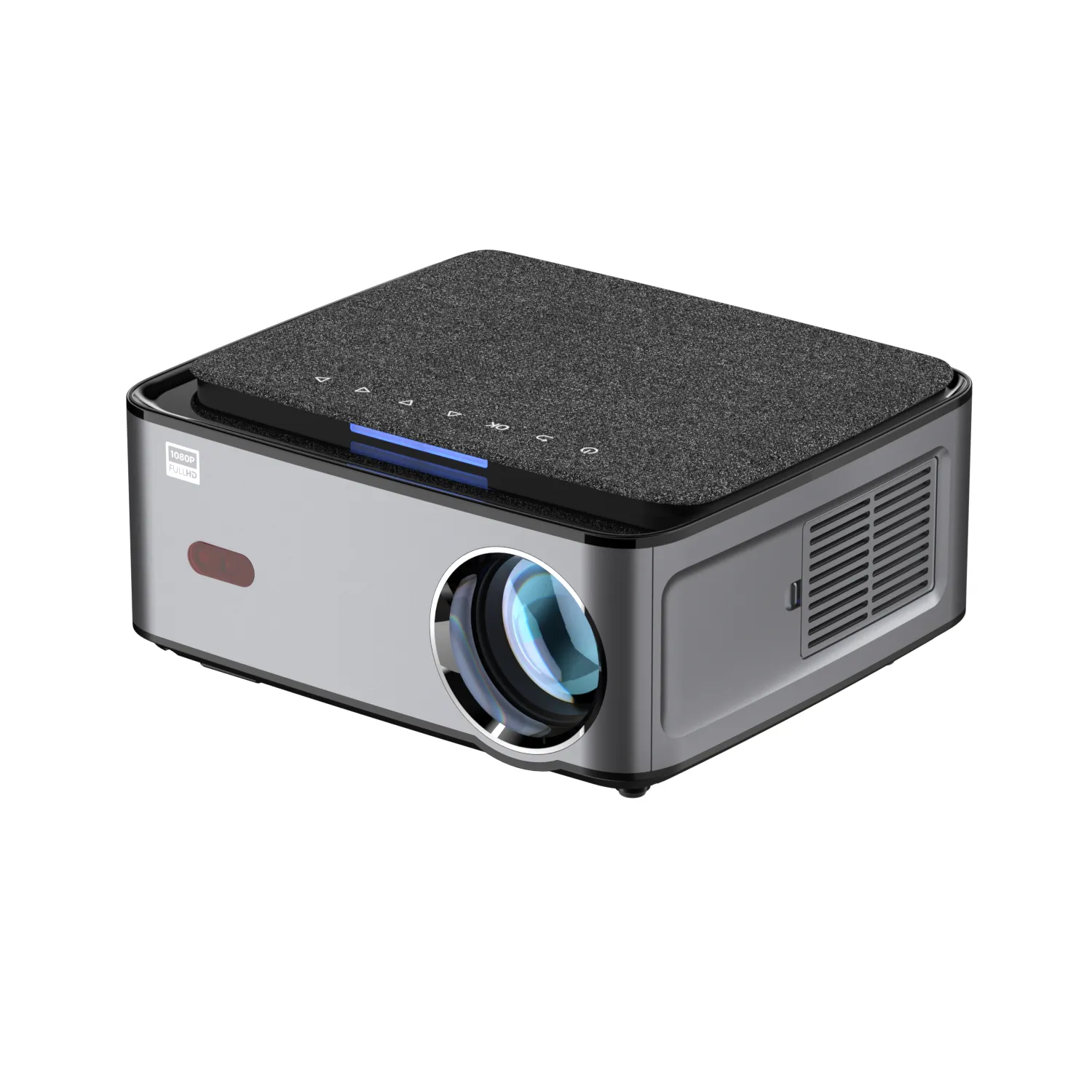

P5 lcd projector is a cost‑effective smart home & multimedia projector powered by HiSi 352 chip with Android 11 OS. Built with the same pursuit of reliable quality as mainstream xiaomi‑grade 4k projector solutions, it delivers 550 ANSI lumens brightness with sealed optical engine and 3‑pieces glass lens, featuring auto focus & auto keystone correction, WiFi6 & BT5.0. Functioning also as a capable gaming projector, it supports 1080P display, 1.39:1 throw ratio and 40‑200‑inch projection size, well‑suited for home cinema and small‑space entertainment. This popular‑style amazon‑ready projector is available for wholesale, OEM & ODM customization for global brand distributors and importers. Check below FAQs for MOQ, certification, sample policy and technical details.
1.This P5 projector adopts HiSi 352 chip with Android 11 OS, can we customize and pre‑load our own APK for our brand project?
Pre‑install custom APK or remove default system apps is supported for OEM orders when meeting relevant MOQ. Please share your APK list and requirements with our sales for evaluation.
2.P5 has 550 ANSI lumens sealed optical engine, what is its continuous‑running performance and noise level for long‑time home movie playback?
Its heat dissipation is optimized for household scenarios. We do not recommend 24‑hour non‑stop heavy‑duty commercial operation. Normal operating noise is about 32dB. If you need models for 24/7 commercial usage, please consult our sales team.
3.The P5 supports auto focus and auto keystone correction, what will happen to picture quality if I use large‑angle side projection?
Normal‑angle side projection delivers satisfying daily viewing experience. Obvious picture degradation may occur under extremely large offset angle.
4.With 1.39:1 throw ratio and support for 40‑200‑inch projection size, can P5 be ceiling‑mounted for small home theater?
Ceiling mounting is available with standard 1/4‑inch mounting holes reserved. Remember to turn on image flip inside system after ceiling installation.
5.P5 is equipped with WiFi6 & BT5.0, how can I mirror my phone content onto this projector?
Phone screen mirroring is supported via Miracast, DLNA and AirPlay. Please make sure your phone and projector connect under the same Wi‑Fi network.
1.If I want to purchase P5 for our local brand resale, what is the MOQ for spot goods and OEM customized version? Can we get tiered bulk pricing?
Stock MOQ for P5 is 100 units, OEM customized order MOQ is 500 units. Tiered pricing is available according to order volume. Please contact our sales for formal quotation.
2.We want to make our own brand for P5, can we customize boot logo and system UI based on Android 11? What is the required MOQ?
OEM & ODM custom service is available. Housing silk‑print MOQ is 100 units; boot logo and system UI customization requires MOQ of 1000 units. Extra cost and lead‑time will be confirmed by sales upon receiving your requirements.
3.We plan to import P5 to European market, what export certifications can you provide for this projector?
CE and RoHS certificates are available for stock P5 units. For other regional certifications such as UKCA, we can provide supporting documents. If you need us to apply certificates on your behalf, buyer shall bear relevant cost and lead time will be extended. All certifications are for complete P5 projector.
4.Before large‑volume order of P5, can I get samples for local market testing? Can sample fee be deducted from bulk order?
Sample orders are accepted. Sample cost and shipping fee should be covered by buyer. Sample fee can be deducted from your subsequent bulk order of P5.
5.As a reseller, do you supply P5 marketing resources including render images, poster artwork and spec sheets for my website & marketplace listing?
Official spec sheets, product renderings and posters of P5 will be provided. Custom‑shot material requires extra charge and meets specific MOQ.
